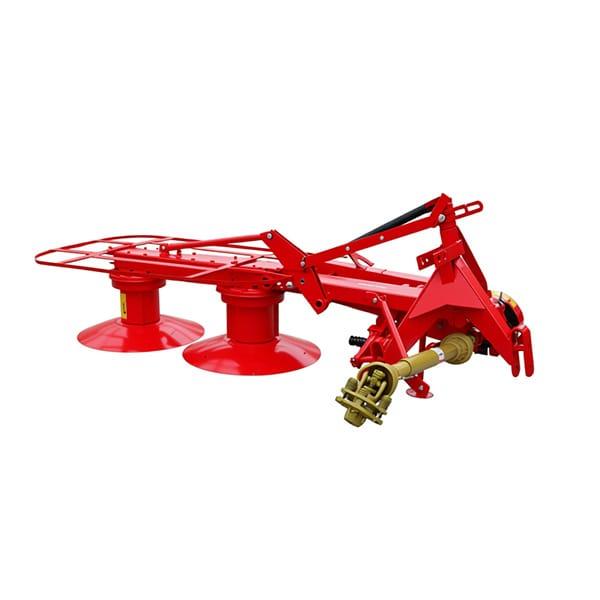

Disc Mower

Matchable horsepower range30-260hp
CategoryField management machinery
Minimum Order Quantity(MOQ)1
Package TypeIron stand packing

Product Introduction

Depending on the number of discs, they are divided into double-disc and multi-disc types, and are mainly used for harvesting various livestock grasses, such as purple ryegrass, ryegrass, and oat grass. Disc mowers have higher operating efficiency and are more suitable for cutting taller crops than reciprocating mowers. The cutter bar is equipped with a spiral handle and a double-spring suspension device, which is easy to raise and lower, and can adapt to uneven ground conditions without damaging the grass. This machine is equipped with an overload protection device. If it encounters an obstacle or abnormal force during operation, the mowing discs move backwards to protect the main unit from continued damage. Multi-disc mowers are also equipped with German Schumacher blades, which are more durable and sharper.

Product Parameters

ModelDM135DM165DM185
Width of cut (mm)135016501850
Height of cut (mm)303030
speed (r/min)540540540
No. of disc222
Tractor power (hp)>30>45>60
Weight (kg)350350350
Mounted cat3 point cat I or II3 point cat I or II3 point cat I or II



ModelTS1670YS2050YS2450YS2860YS3200
Width of cut (mm)16702050245028603200
No. of disc45678
Disc speed(r/min)29002900290029002900
PTO speed (r/min)540540540540540
Blade brandGerman SchumacherGerman SchumacherGerman SchumacherGerman SchumacherGerman Schumacher
Disc cutting dia. (mm)500500500500500
Travel speed (km/h)4~124~124~124~124~12
Tractor power (hp)70~8580~9090~110110~130140~160
Weight (kg)436485590629707
Mounted cat3 point cat I or II3 point cat I or II3 point cat II3 point cat II3 point cat II
