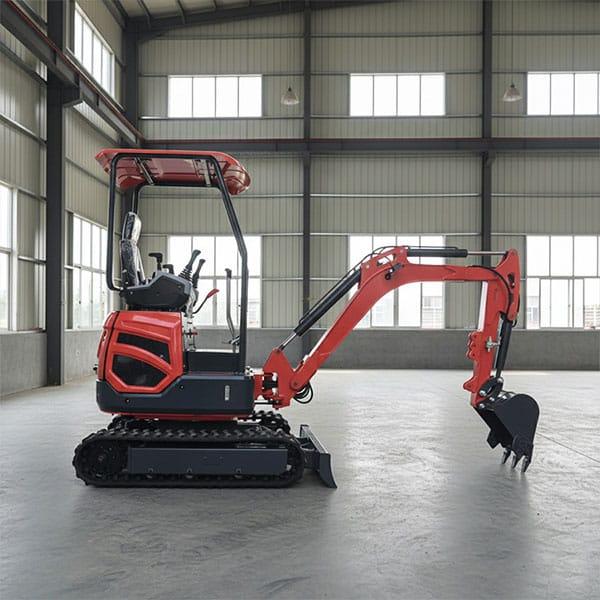

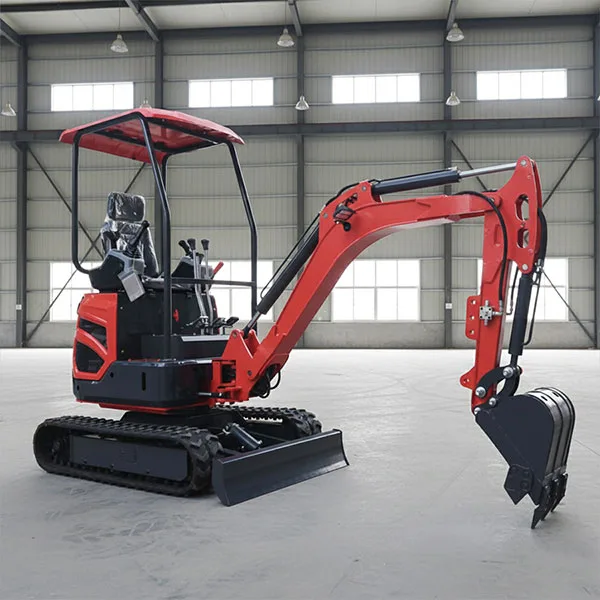

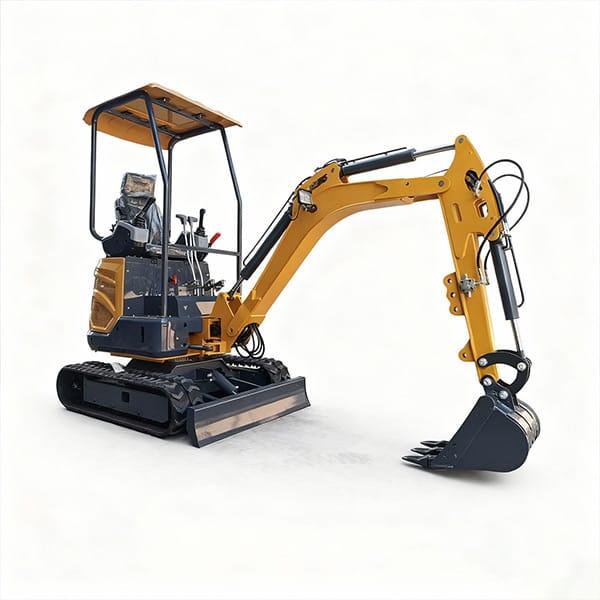

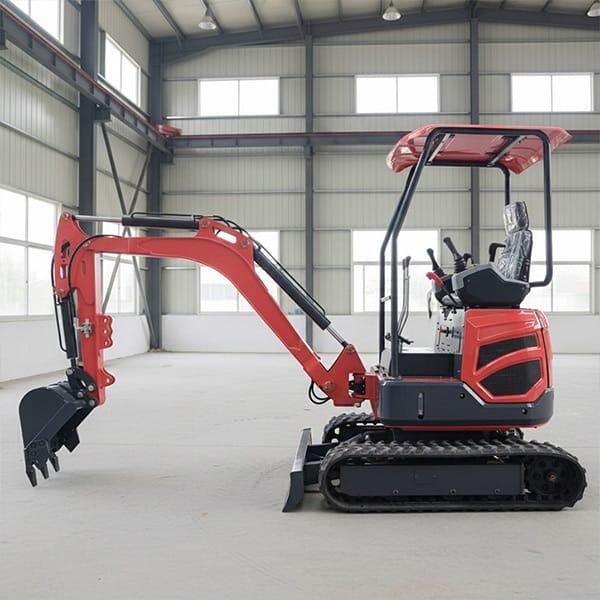

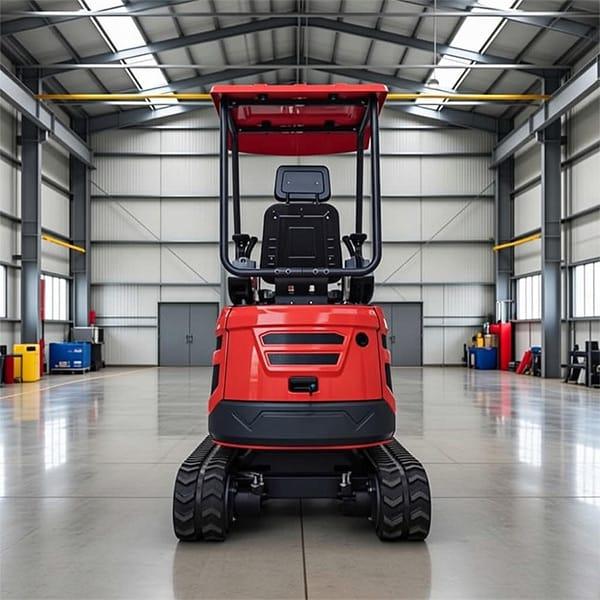

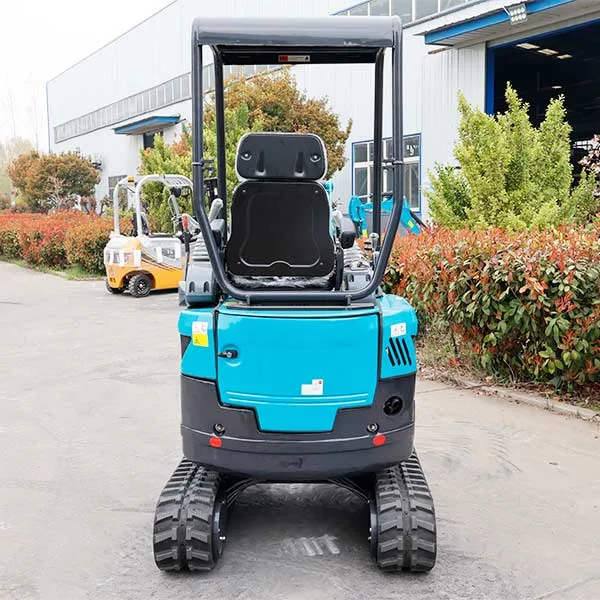

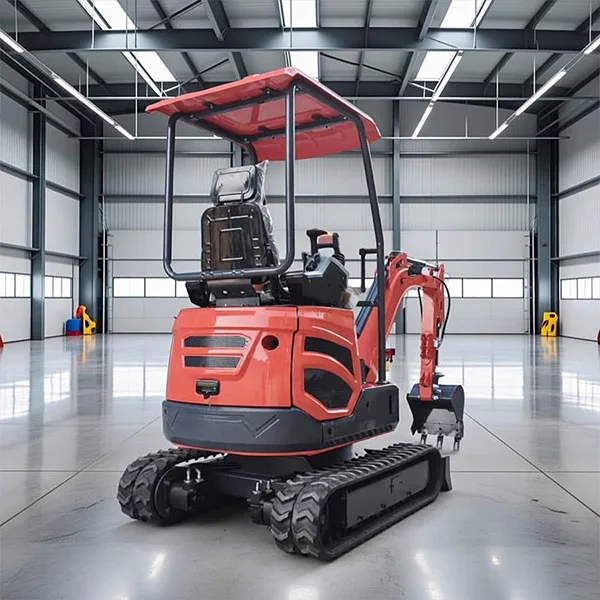

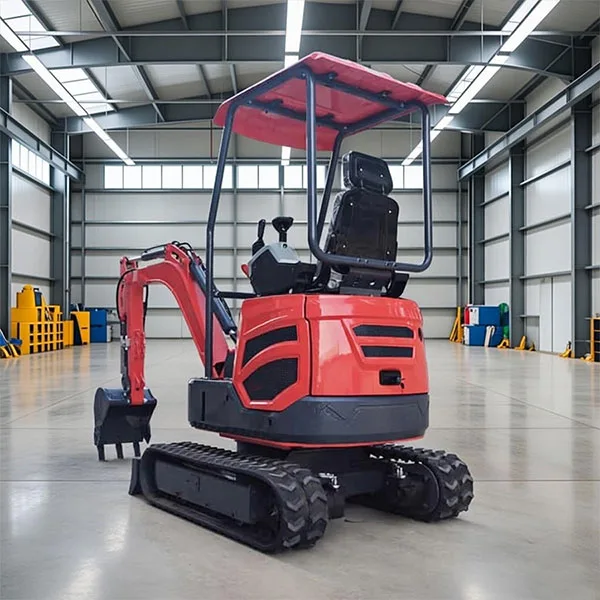

High Quality 1.8T Mini Excavator 18ECO
Max. digging height: 2800 mm
Max. dumping height: 1850 mm
Max. digging depth: 2100 mm
Max. digging radius on ground: 3550 mm
Min. swing radius of working device: 1540 mm
Max. lifting height of bulldozer: 150 mm
Max. cutting depth of bulldozer: 220 mm
- Efficient global shipping
- High quality product guarantee
- Products can be customized according to your needs
- Comprehensive customer service process
Product Description
The QL-18 Mini Excavator is a powerful and versatile construction machine engineered for high-efficiency performance in demanding environments. With an operation weight of 1800 kg, it offers superior stability and increased power for landscaping, utility works, and various medium-duty construction projects.
The machine features a high-performance three-cylinder direct injection engine, with options including the robust 18.8 kW Laidong 385 or reliable Kubota and Yanmar models, ensuring consistent power delivery for professional tasks. Its advanced hydraulic system, providing a rated working flow of 25 L/min and a bucket digging force of 9 kN, ensures precise control and smooth operation required for heavy-duty excavation.
Designed for accessibility and flexibility in restricted job sites, the QL-18 features an adjustable overall width of 950/1200 mm and a tight tail swing radius of 640 mm. With an impressive maximum digging depth of 2100 mm and a maximum digging radius on ground of 3550 mm, this excavator allows operators to work efficiently in confined areas such as narrow alleys and urban construction sites.
Parameter
| Category | Parameter | Specification |
| Engine & Performance | Engine Model | Laidong 385 (18.8 KW) / Kubota D722 (10.2 KW) / Kubota D902 (11.8 KW) / Yanmar 3TNV74F (11.2 KW) |
| Engine Type | Three-cylinder direct injection | |
| Displacement | 0.719 L | |
| Rated Power | 18.8/2200 kw/rpm | |
| Arm Digging Force | 5.5 kN | |
| Bucket Digging Force | 9 kN | |
| Operation Weight | 1800 kg | |
| Bucket Capacity | 0.04 m³ | |
| Travel Speed | 2.5 km/h | |
| Rated Working Flow | 25 L/min | |
| Dimensions | Overall Length | 3210 mm |
| Overall Width | 950/1200 mm | |
| Overall Height (to top of cab) | 2230 mm | |
| Min. Ground Clearance | 150 mm | |
| Tail Swing Radius | 640 mm | |
| Standard Track Shoe Width | 200 mm | |
| Boom Swing (Left/Right) | 62.7 ° / 49.7 ° | |
| Working Scope | Max. Digging Height | 2800 mm |
| Max. Dumping Height | 1850 mm | |
| Max. Digging Depth | 2100 mm | |
| Max. Digging Radius on Ground | 3550 mm | |
| Max. Lifting Height of Bulldozer | 150 mm | |
| Capacities | Fuel Tank Capacity | 12 L |
| Hydraulic Oil Tank Capacity | 15 L | |
| Cooling System | 5 L |

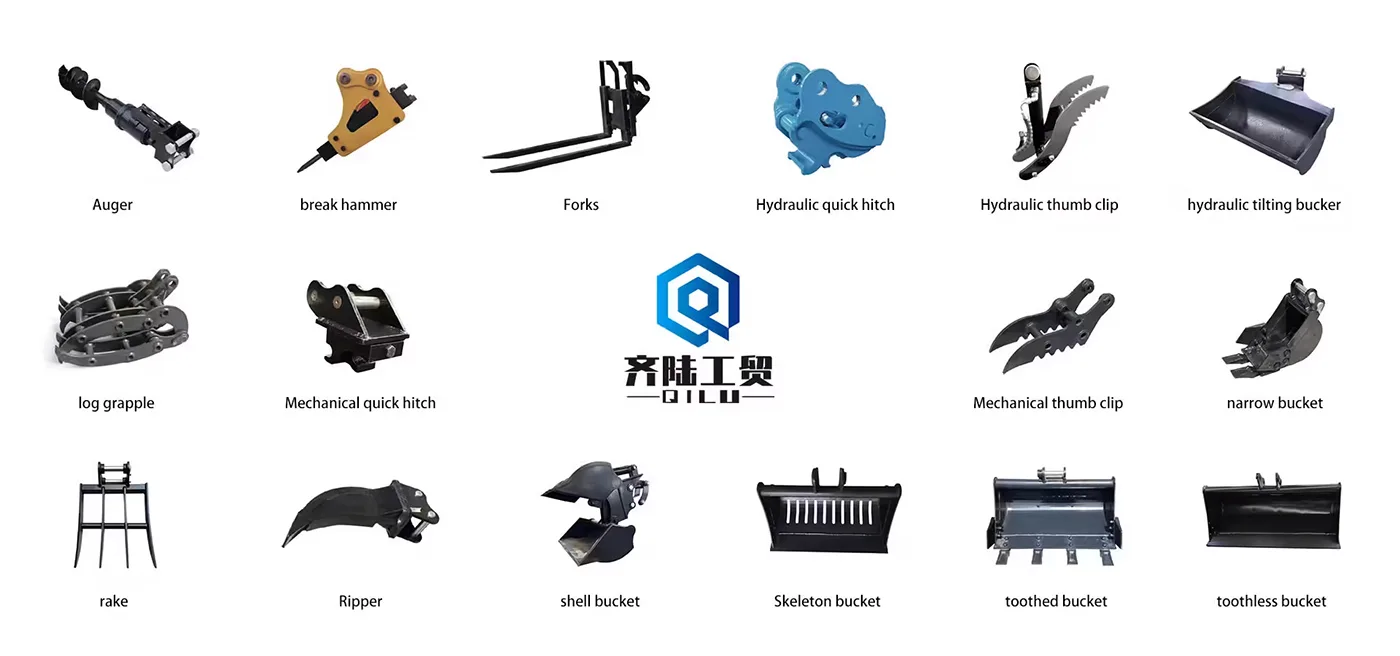

Compatible Accessories
