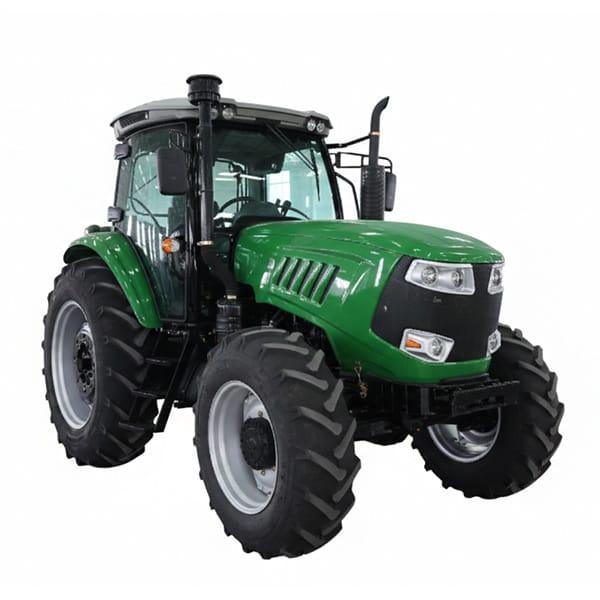

Mini Tractor 1304D

Overall Dimension (L×W×H):4600 *2200 *2950 mm

Min. Operating Weight:4726 kg

Wheelbase:2500 mm

Wheel Track (Front/Rear):1440–1740 / 1610–2210 mm

Product Description

This 130HP tractor is powered by a robust engine from a renowned domestic brand, with Dongfanghong as standard and Yuchai as an option, ensuring stable quality control. Boasting over 20% power reserve and high torque output, it easily handles heavy-load operations. The reinforced front and rear axles significantly enhance load-bearing capacity, enabling steady performance even when equipped with heavy agricultural machinery.

The entire vehicle adopts high-seal oil pipes with excellent pressure resistance, ensuring smooth operation of the hydraulic system under complex working conditions. The hydraulic disc brake system delivers strong braking force and outstanding anti-thermal fade performance, maintaining stable braking effect during long hours of operation with simple and efficient operation.

Equipped with an LED digital instrument panel, it clearly displays vehicle status information such as speed and fuel level, providing a car-level driving experience. The hydraulic three-point linkage meets Class 2 standards, paired with a separate heavy-pressure cylinder, achieving a maximum lifting capacity of 3000KG, which can easily tow large tillers, seeders, and other equipment. It comes standard with three sets of hydraulic outputs, compatible with various hydraulic agricultural machinery to meet full-process operational needs including plowing, sowing, and harvesting. The flexible transmission ratio design across multiple series can accurately match different customers’ working scenarios, delivering high efficiency whether in continuous plain farming or complex hilly plots.

Product Parameters

CategoryItemSpecification
Dimensions & WeightOverall Dimension (L×W×H)$4600 times 2200 times 2950$ mm
Min. Operating Weight4726 kg
Wheelbase2500 mm
Wheel Track (Front/Rear)1440–1740 / 1610–2210 mm
EngineModel / BrandYTO YT0130HP Stage II
TypeVertical, water-cooling, four-stroke, common rail
Cylinder Count6
Rated Power130 HP / 95.6 kW
Rated Speed2200 r/min
Drive TrainClutchSingle disc, dry, independent control, dual stage
GearboxTDF 16 Forward + 8 Reverse
Gear Shift TypeShift sleeve
Steering & BrakeSteering TypeFull hydraulic steering
Brake TypeHydraulic control, wet, disc
Walking DeviceTire Size (Front/Rear)7.5-20 / 16.9-34
Working DeviceSuspension TypeRear, three-point suspension, Category III
Adjustment ModeHeight adjustment, floating control
Hydraulic Output2 groups
Standard PTO Speed8 or 6 keys; 760/850 or 540/1000 rpm
SafetyProtectionROPS (Roll-over protection structure)
