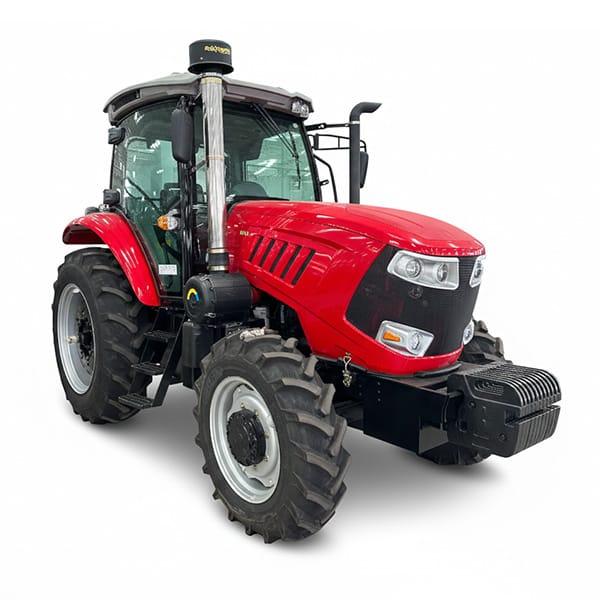

Mini Tractor 1804F
Overall Dimension (L×W×H)：5155 × 2500 × 3150 mm
Min. Operating Weight：6320 kg
Wheelbase：2750 mm
Wheel Track (Front)：1700, 1750, 1850, 1900, 1950, 2050 mm
Wheel Track (Rear)：1650–2400 mm
- Efficient global shipping
- High quality product guarantee
- Products can be customized according to your needs
- Comprehensive customer service process
Product Description
The 1804 Heavy-Duty 4WD Tractor is a flagship agricultural powerhouse designed for high-intensity farming and large-scale industrial tasks. With a massive minimum operating weight of 6320 kg and a long 2750 mm wheelbase, it provides unmatched traction and stability when handling the most demanding heavy-duty implements.
Powered by a high-performance YTO 6-cylinder common rail engine delivering 180 HP (132.3 kW), the 1804 ensures superior pulling force and reliable performance in the toughest soil conditions. Its advanced TF16F + 8R shift sleeve gearbox and optimized hydraulic system with Category III three-point suspension provide precise control and high lifting capacity, making it the ideal choice for professional large-scale agricultural operations.
The versatile chassis features an adjustable rear wheel track of up to 2400 mm and massive 18.4-38 tires, allowing the machine to work efficiently across various terrains while maintaining maximum ground grip. Additionally, the standard luxury cabin and support for advanced options like GPS unmanned driving and front PTO systems ensure peak productivity and operator comfort for modern precision farming.
Product Parameters
| Category | Item | Specification |
| Model | Model Name | 1804 |
| Dimensions & Weight | Overall Dimension (L×W×H) | 5155 × 2500 × 3150 mm |
| Min. Operating Weight | 6320 kg | |
| Wheelbase | 2750 mm | |
| Wheel Track (Front) | 1700, 1750, 1850, 1900, 1950, 2050 mm | |
| Wheel Track (Rear) | 1650–2400 mm | |
| Engine | Model / Brand | YTO YT0180HP 6-Cylinder Stage II |
| Type | Vertical, water-cooling, four-stroke, common rail | |
| Cylinder Count | 6 | |
| Rated Power | 180 HP / 132.3 kW | |
| Rated Speed | 2200 r/min | |
| Drive Train | Clutch | Single disc, dry, independent control, dual stage |
| Gearbox | TF16F + 8R | |
| Gear Shift Type | Shift sleeve | |
| Steering & Brake | Steering Type | Full hydraulic steering |
| Brake Type | Mechanical control, wet, disc | |
| Walking Device | Tire Size (Front/Rear) | 14.9-26 / 18.4-38 |
| Working Device | Suspension Type | Rear, three-point suspension |
| Suspension Category | Category III | |
| Tillage Depth Adjustment | Height adjustment, floating control | |
| Hydraulic Output Device | 2 groups | |
| Standard PTO Speed | 8 or 6 keys; 760/850 or 540/1000 rpm | |
| Other | Protection | Cabin (cab) |
| Optional Equipment | Options | Swing traction, front fender, quick suspension, GPS unmanned driving and base station, front suspension and front power take-off, replaced with Yuchai National II engine, replaced with Xichai National II engine |
