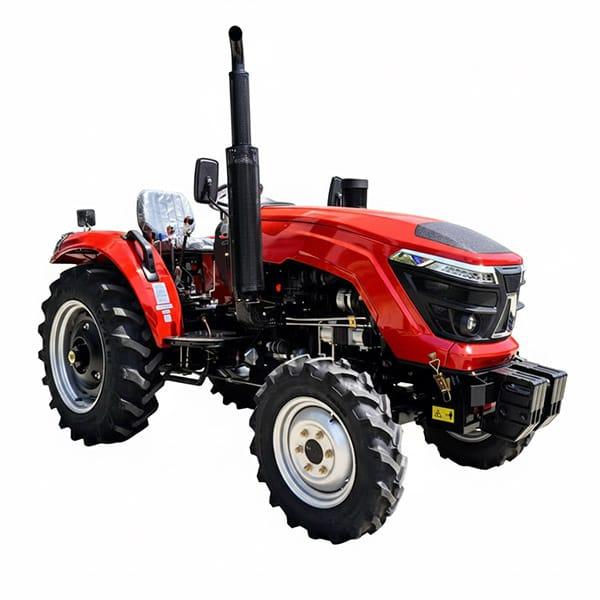

Mini Tractor 504E

Weight:1410 kg

Wheel Base:1800 mm

Overall Dimension (LWH):3450 * 1400 * 2000 mm

Tires Size:6.5-16 / 11.2-24

Product Description

The 50 HP 4WD Compact Tractor is a robust and high-performance agricultural machine designed for intensive farming and professional utility tasks. With a structural weight of 1410 kg, it offers superior stability and traction, providing an enhanced maximum rated drawing power of $ge 8.5text{ KN}$ for demanding plowing and hauling projects.

Powered by the reliable Laidong 495BT engine delivering 50 HP, this tractor ensures stable performance while adhering to Stage II emission standards. Its advanced 8+8 gear transmission and double-stage clutch provide smooth operation and a versatile speed range from 2.06 to 31.30 km/h. The integration of a dual-speed PTO (540/720 rpm) and two groups of hydraulic outputs makes it highly compatible with a wide array of sophisticated implements.

The compact design, featuring an overall width of 1400 mm and an 1800 mm wheelbase, allows the machine to work efficiently in restricted job sites such as orchards, vineyards, and greenhouses. Equipped with hydraulic steering and integrated front and rear ballast, it ensures precise control and maximum productivity for professional agricultural operations.

CategoryItemSpecification
Power SystemDriven Model4WD
EngineLaidong 495BT
Engine Power50 HP
Emission StandardsII stages
TransmissionClutchDouble-stage type Clutch
Gears8 + 8
Speed Range (km/h)Forward: 2.06–31.30
Reverse: 2.71–12.52
PerformancePTO Speed540 / 720 rpm
Max. Rated Drawing Power$ge 8.5text{ KN}$
SteeringHydraulic steering
DimensionsWeight1410 kg
Wheel Base1800 mm
Overall Dimension (LWH)3450 * 1400 * 2000 mm
Tires Size6.5-16 / 11.2-24
EquipmentBallastFront and Rear ballast (one layer)
Hydraulic Output2 groups
