Product Introduction

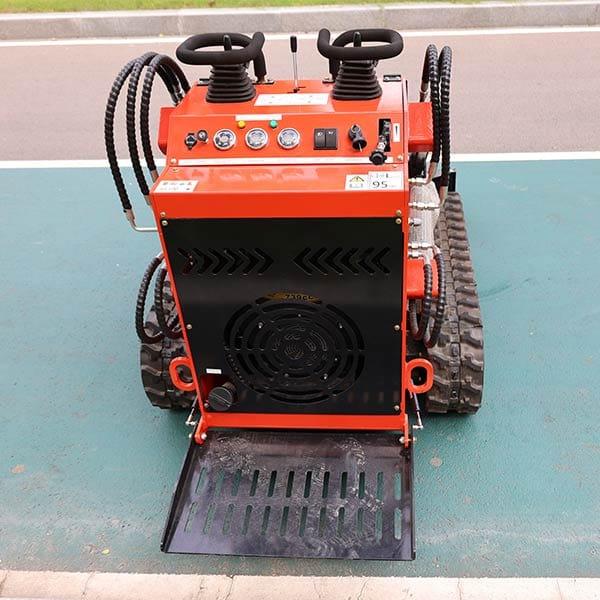

The QL-390W Skid Steer Loader is a versatile and high-performance machine engineered for heavy-duty material handling in extremely confined environments. With a robust operating weight of 950 kg and a rated operating capacity of 300 kg, it strikes the perfect balance between compact design and lifting power, making it an ideal choice for landscaping, narrow-access construction, and agricultural applications.

Available with reliable powerplants from ROTO, Koop, or Briggs & Stratton, this loader delivers a punchy 13.5 HP at 3600 rpm. This powertrain, combined with a 20 MPa hydraulic system, ensures smooth operation and a respectable travel speed of 8.5 km/h. Designed for endurance, it features dual 20L fuel and hydraulic tanks to maximize uptime during long shifts.

The machine is specifically optimized for tight spaces, featuring a chassis width of just 1100 mm and an impressive turning radius of 1660 mm. Despite its small footprint, it offers a significant working height of 2715 mm and a dump height of 2173 mm, allowing it to easily load high-sided trucks or hoppers. With a 320 mm ground clearance and a 30° departure angle, this loader navigates uneven terrain with ease, providing professional contractors with a reliable, multi-purpose workhorse for any job site.

Product Parameters
