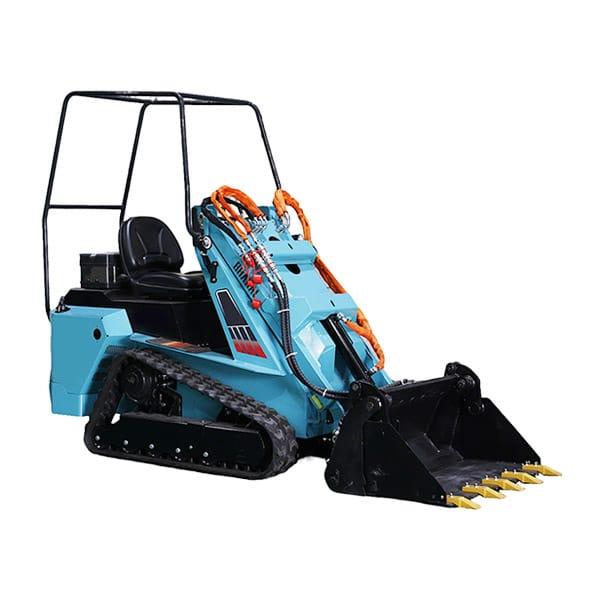

Track Skid Steer Loader-490T
Max. Travel Speed：4km/h
Max. Working Height：2590mm
Max. Pin Height (Bucket Pivot)：2590mm
Max. Bucket Rollback Angle (on ground)：107°
Max. Bucket Angle (at ground level)：19
Max. Ground Clearance：190mm
Max. Departure Angle：30°
Max. Turning Radius (Front)：1660mm
- Efficient global shipping
- High quality product guarantee
- Products can be customized according to your needs
- Comprehensive customer service process
Product Introduction
The QL-490T Skid Steer Loader is a versatile and high-performance machine engineered for demanding material handling tasks in restricted environments. With a robust operating weight of 1,100 kg and a rated operating capacity of 430 kg, it strikes the perfect balance between agile maneuverability and heavy-lifting power, making it an ideal choice for landscaping, narrow-access construction, and agricultural applications.
The machine offers exceptional versatility with multiple engine options, including ROTO, Koop, and Briggs & Stratton, delivering a powerful 16.8 kW output at 3,600 rpm. This powertrain, combined with a 20 MPa hydraulic system, ensures smooth, responsive control and the durability needed for consistent daily operation. Its high-efficiency design is supported by dual 20L fuel and hydraulic tanks, allowing for extended work cycles with minimal downtime.
Designed for tight job sites, the loader features a slim 1,000 mm chassis width and a compact front turning radius of 1,660 mm, allowing it to navigate through standard gates and narrow corridors with ease. Despite its small footprint, it delivers impressive vertical reach with a max working height of 2,590 mm and a dump height of 2,050 mm, ensuring effortless loading into trucks and high-walled containers.
Product Parameters
| Category | Item | Unit | Value |
| Performance | Operating Weight | kg | 1100 |
| Rated Operating Capacity | kg | 430 | |
| Tipping Load | kg | 550 | |
| Max. Travel Speed | km/h | 4 | |
| Engine | Engine Brand | – | ROTO / Koop / BRIGGS&STRATTON |
| Engine Power | kW / rpm | 16.8 / 3600 | |
| System | System Pressure | MPa | 20 |
| Fuel Tank Capacity | L | 20 | |
| Oil Tank Capacity | L | 20 | |
| Working Dimensions | Max. Working Height | mm | 2590 |
| Max. Pin Height (Bucket Pivot) | mm | 2590 | |
| Dump Height | mm | 2050 | |
| Dump Reach (Distance from machine) | mm | 855 | |
| Dump Angle | ° | 25 | |
| Max. Bucket Rollback Angle (on ground) | ° | 107 | |
| Max. Bucket Angle (at ground level) | ° | 19 | |
| Overall Dimensions | Overall Height | mm | 1985 |
| Overall Width | mm | 1000 | |
| Bucket Width | mm | 1050 | |
| Overall Length (with bucket) | mm | 2365 | |
| Overall Length (without bucket) | mm | 1875 | |
| Track Ground Length | mm | 1030 | |
| Wheel Track | mm | 790 | |
| Max. Ground Clearance | mm | 190 | |
| Max. Departure Angle | ° | 30 | |
| Max. Turning Radius (Front) | mm | 1660 |
