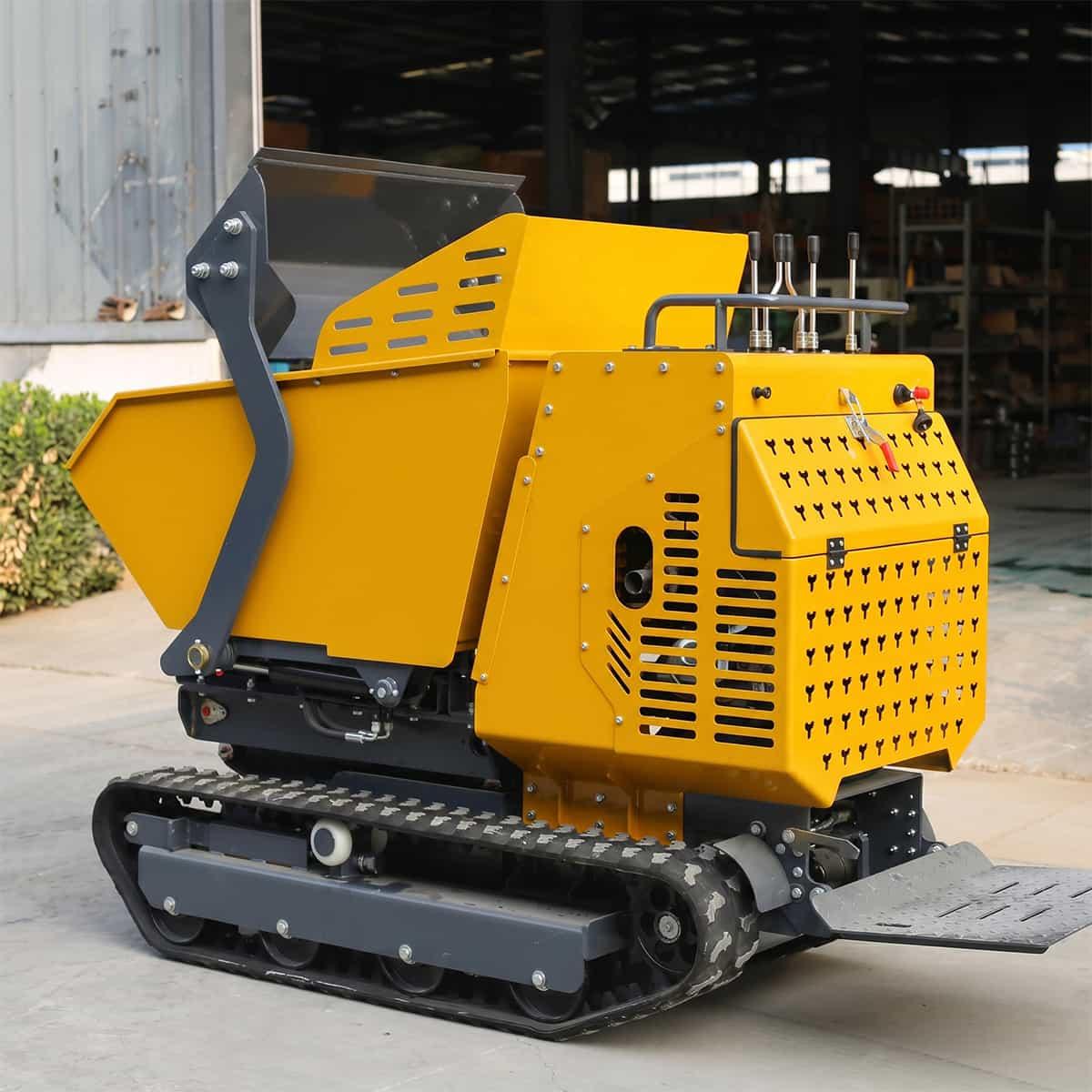

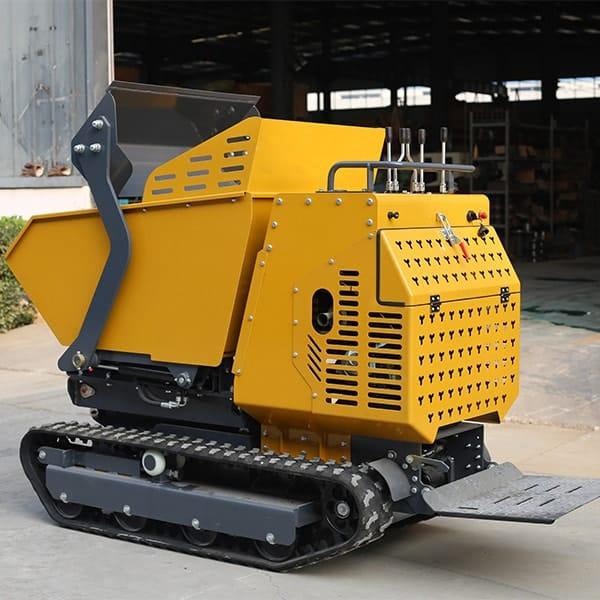

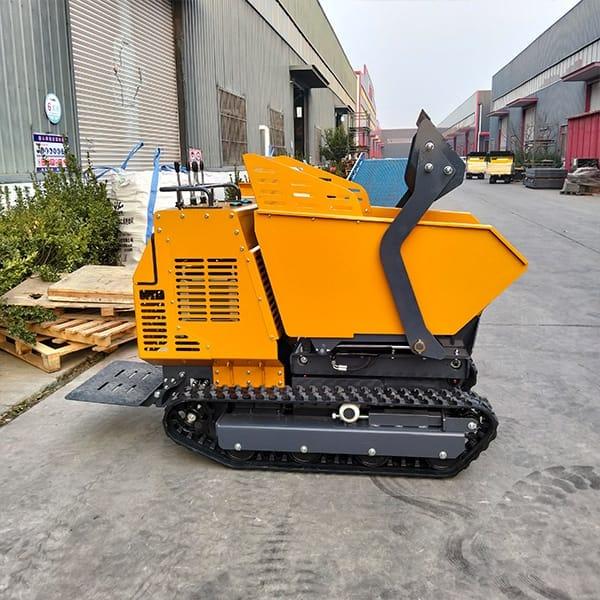

BL-1000
Full-level Basic Performance, Effortless All-Terrain Access
It inherits all core advantages of the standard model. The high-passability tracked chassis adapts to complex conditions including muddy land, slopes, mountains and grasslands. Compact and flexible, it works smoothly even in narrow spaces. Built with premium steel and fitted with a reinforced shock-resistant chassis, the machine is sturdy, wear-resistant and fully qualified for long-term operation in harsh environments.

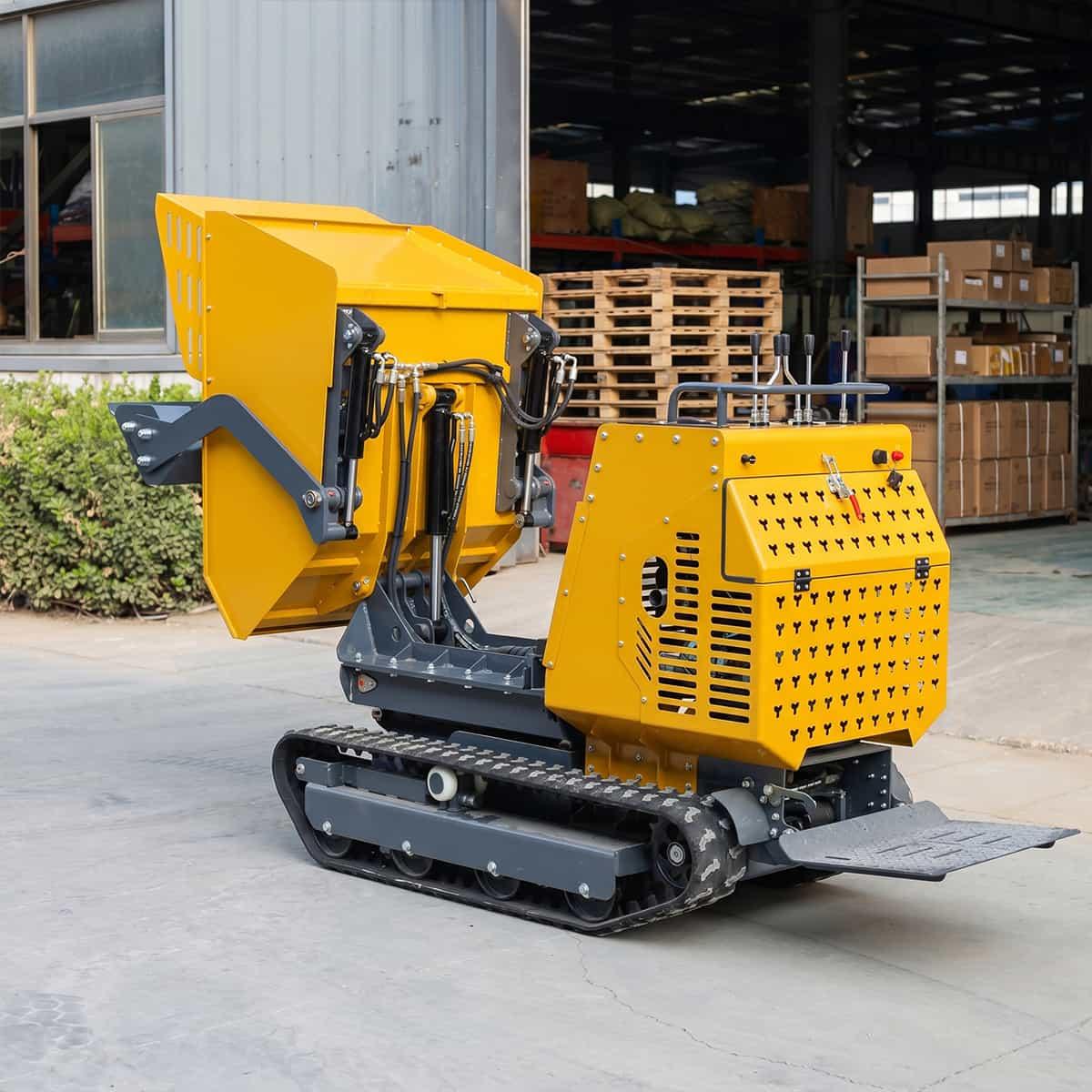

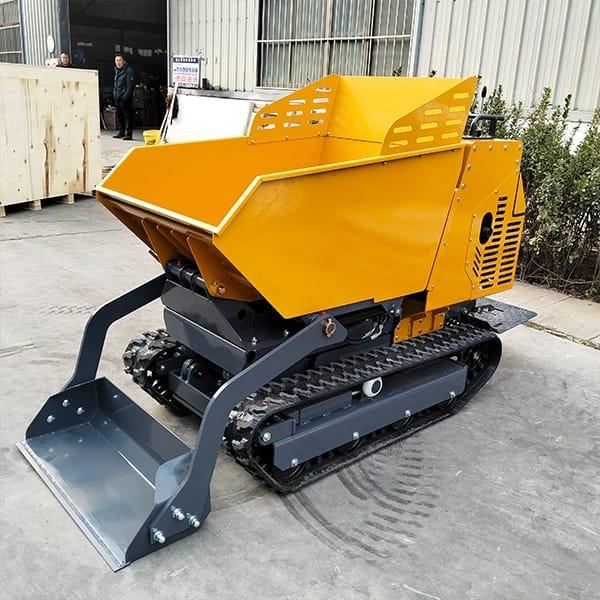

Integrated Self-Loading Operation, High Efficiency and Labor Savings
Equipped with a heavy-duty self-loading bucket, no auxiliary equipment is needed, allowing single-person independent material loading. Combined with a hydraulic dumping system, one-click unloading is labor-saving and efficient. The large-angle tipping bucket ensures thorough discharge with less residue, greatly reducing labor intensity and improving transportation efficiency.

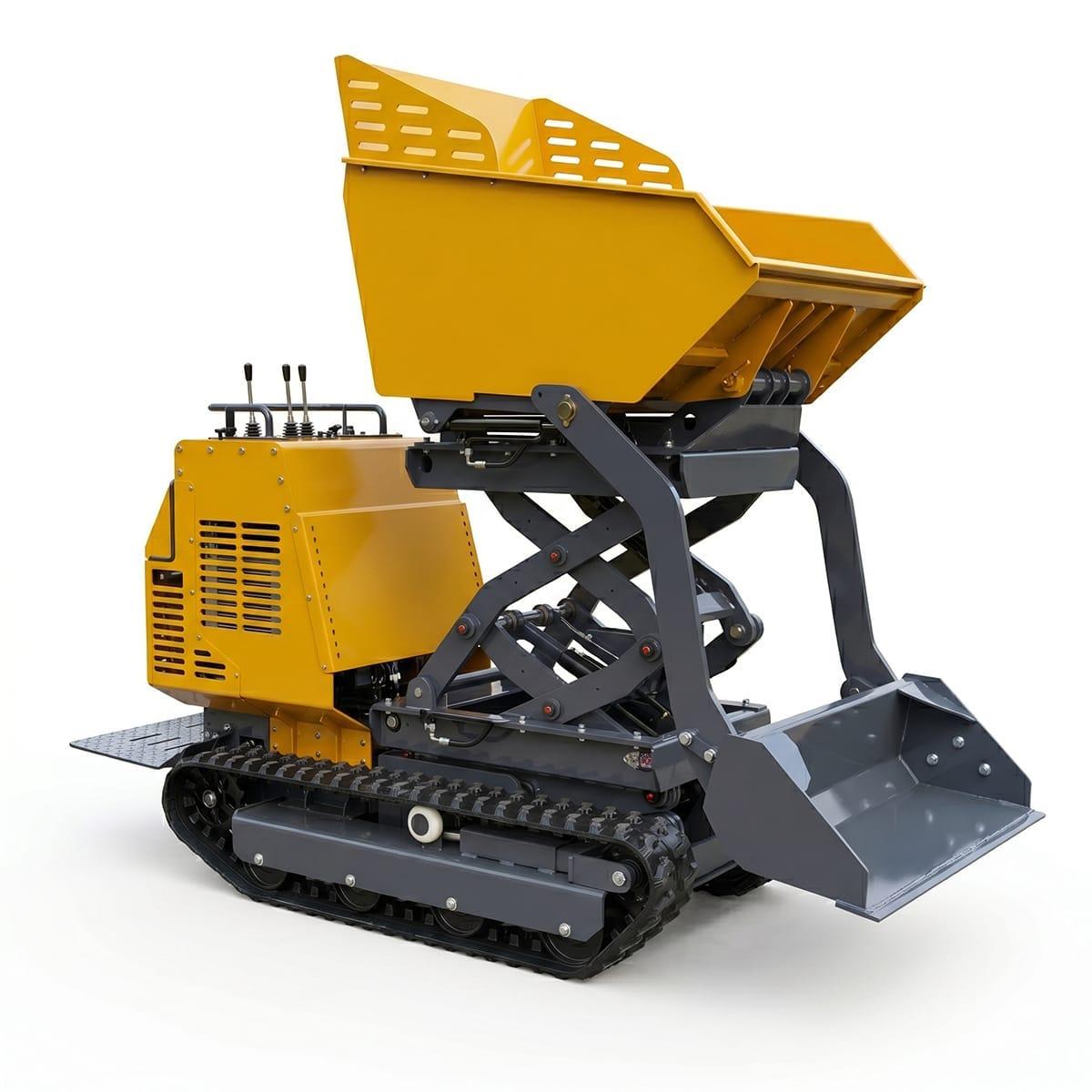

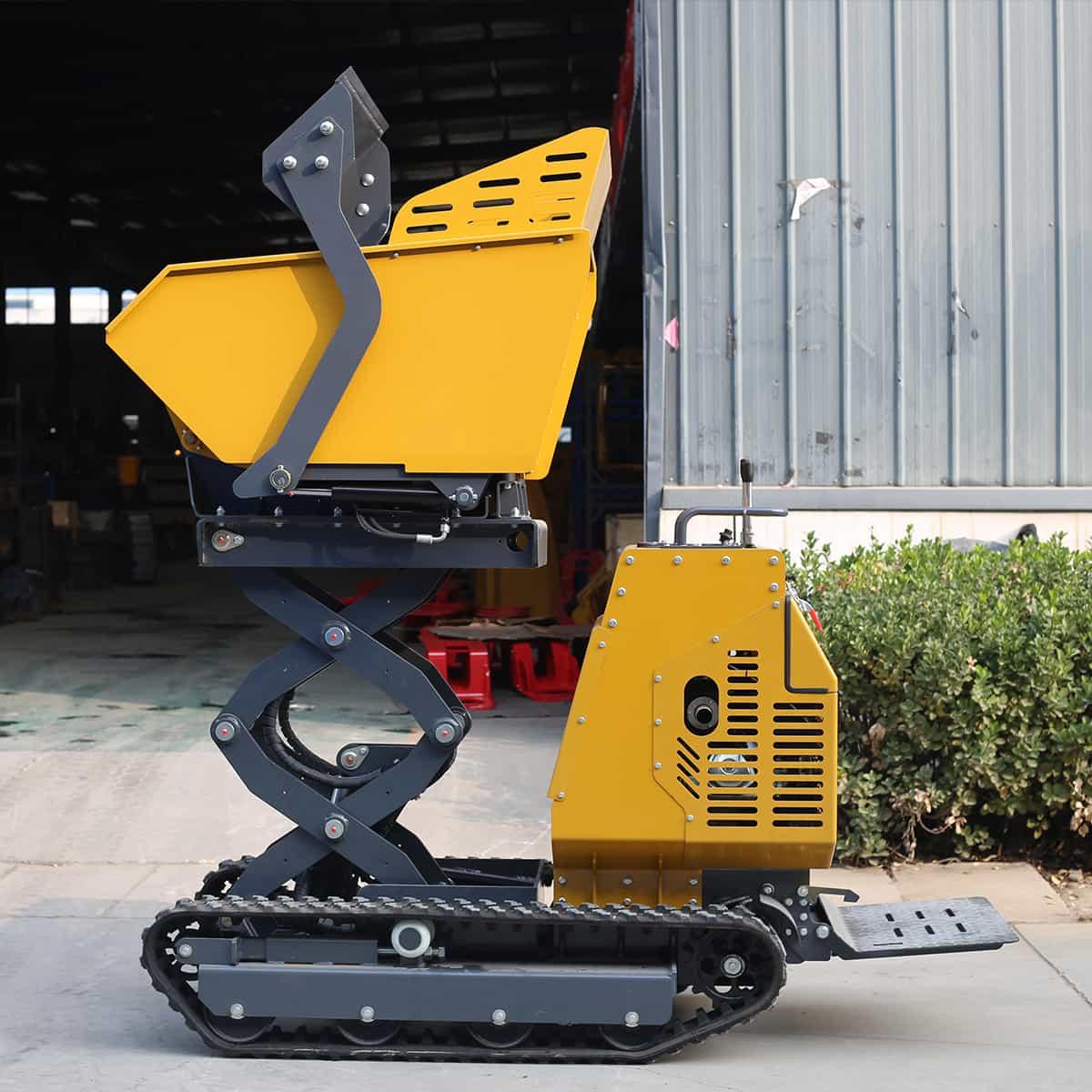

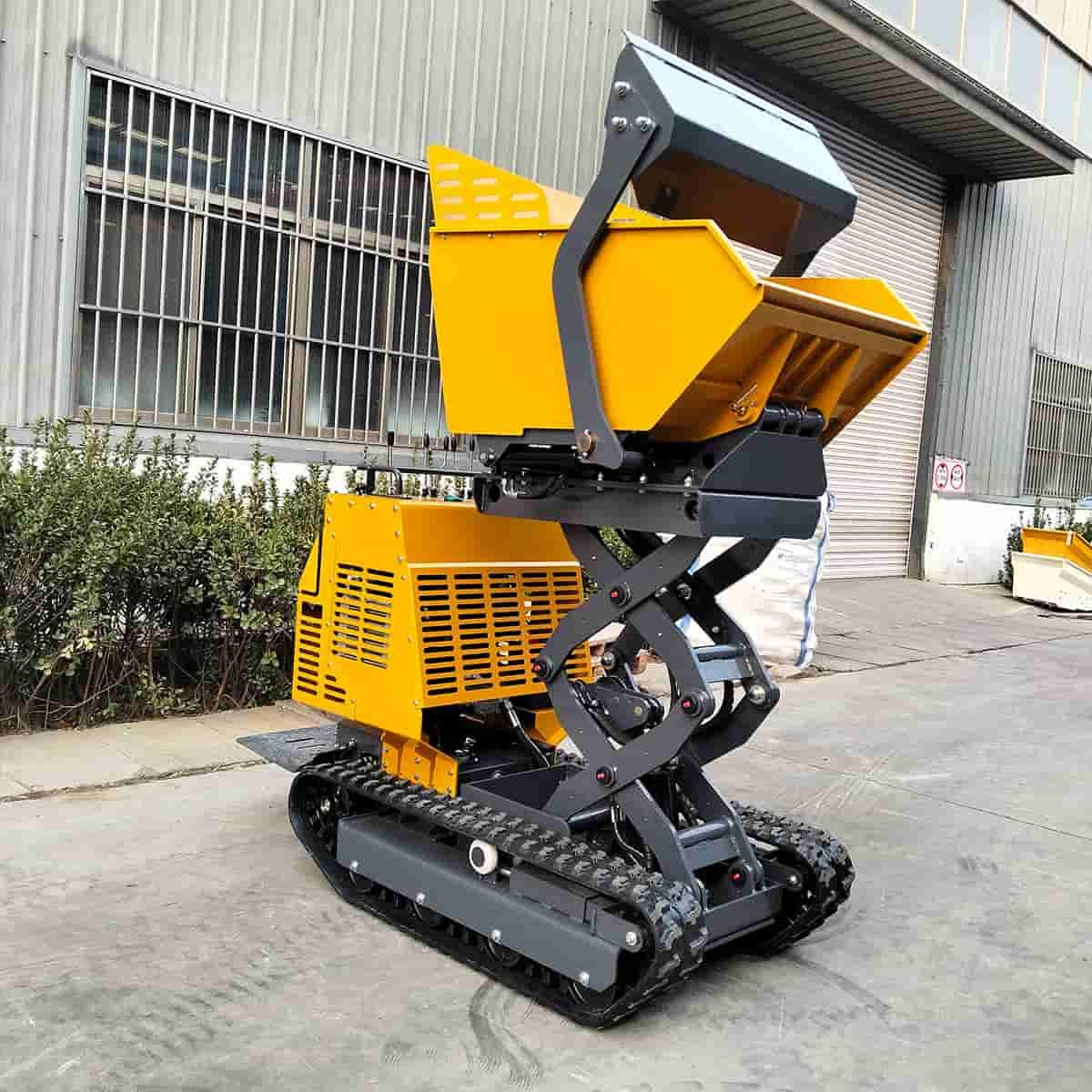

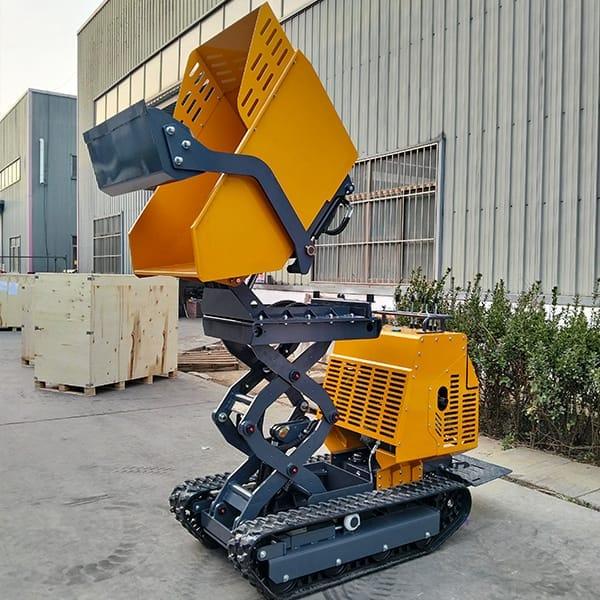

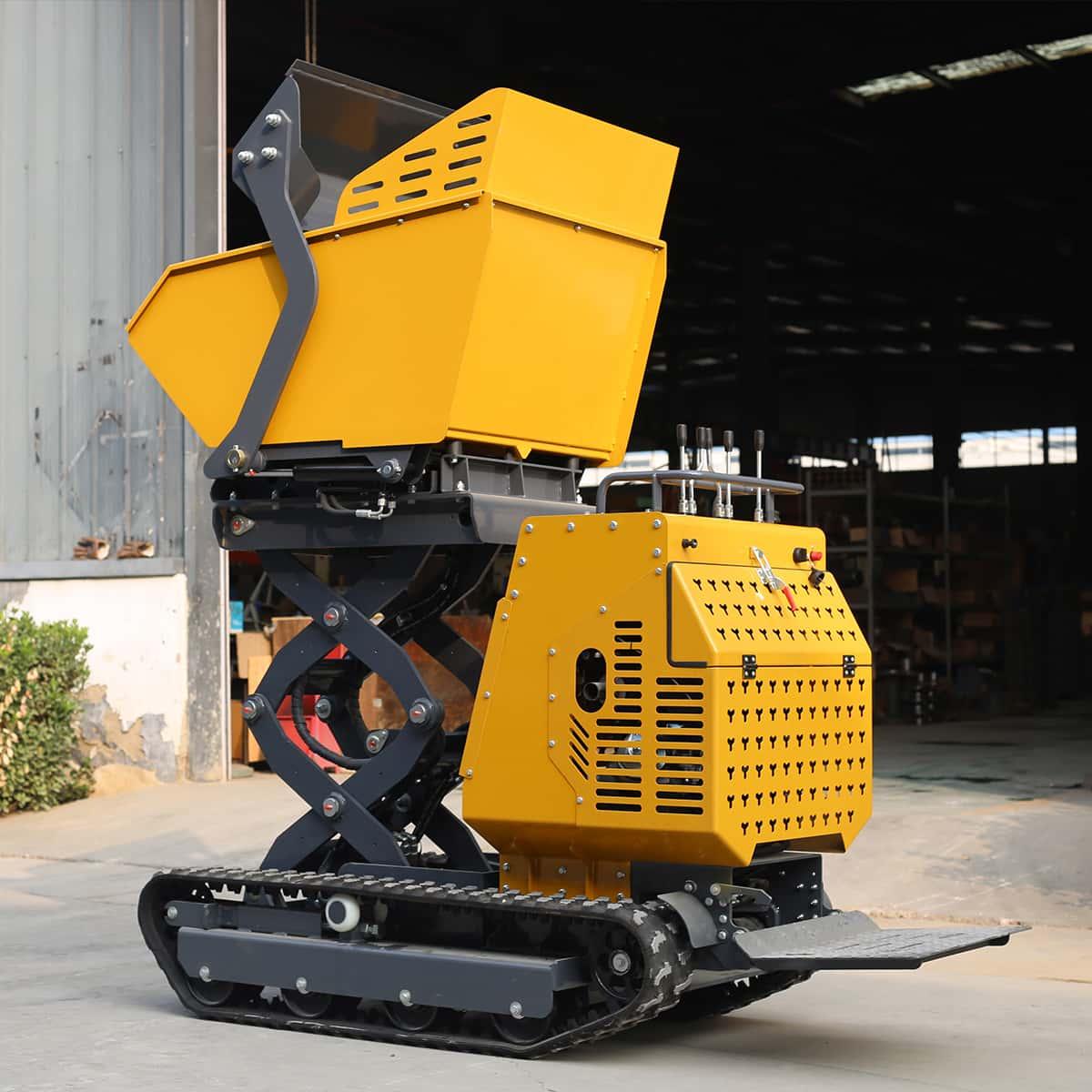

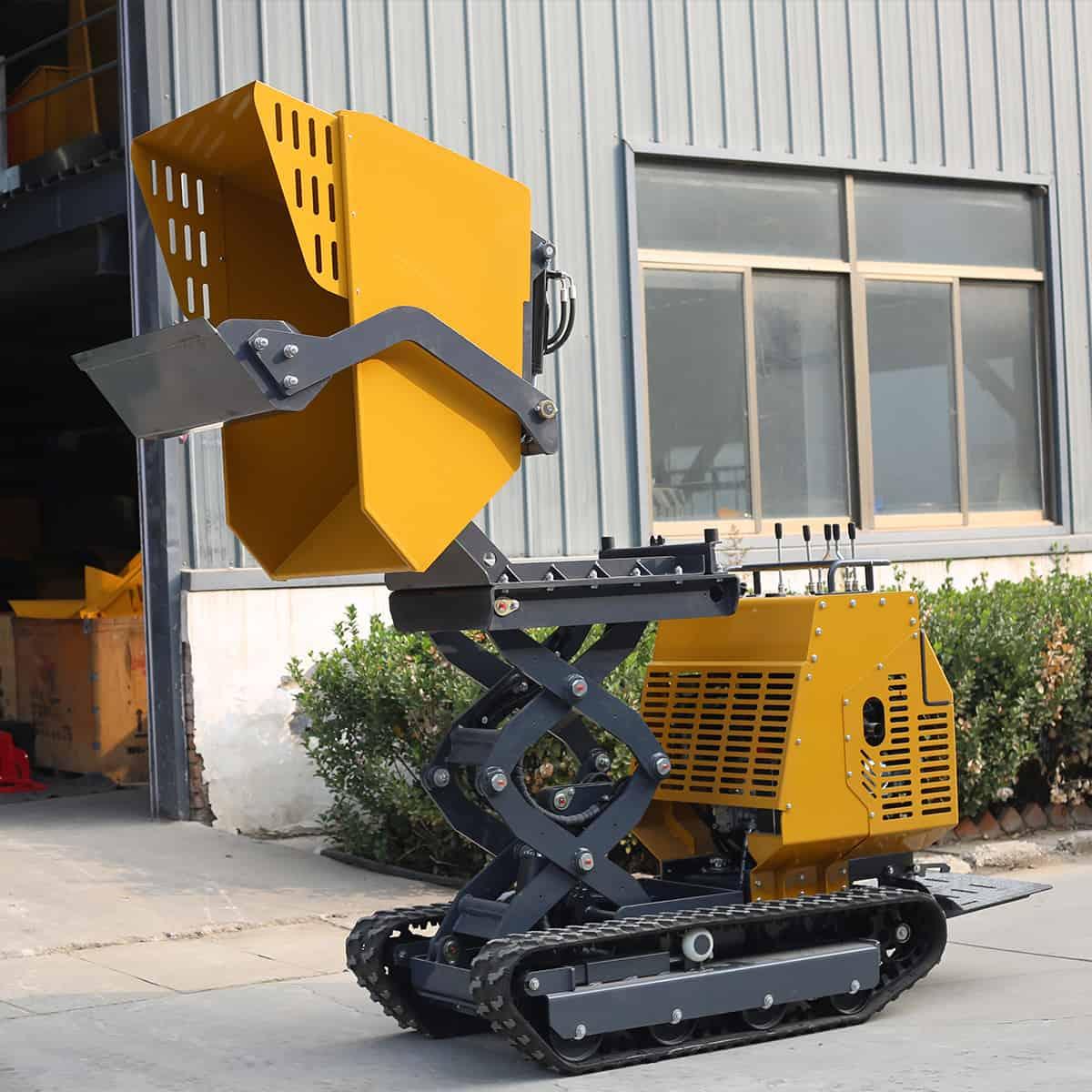

Lifting Bucket Structure, More Flexible Unloading Docking
Featured with a hydraulic lifting system, the bucket height can be adjusted freely as needed. It perfectly matches cargo platforms, transport vehicles and storage containers of different heights. Direct docking and unloading eliminate secondary manual handling, solving the industry pain point of traditional equipment being unable to connect with high platforms, and expanding diversified operation scenarios.

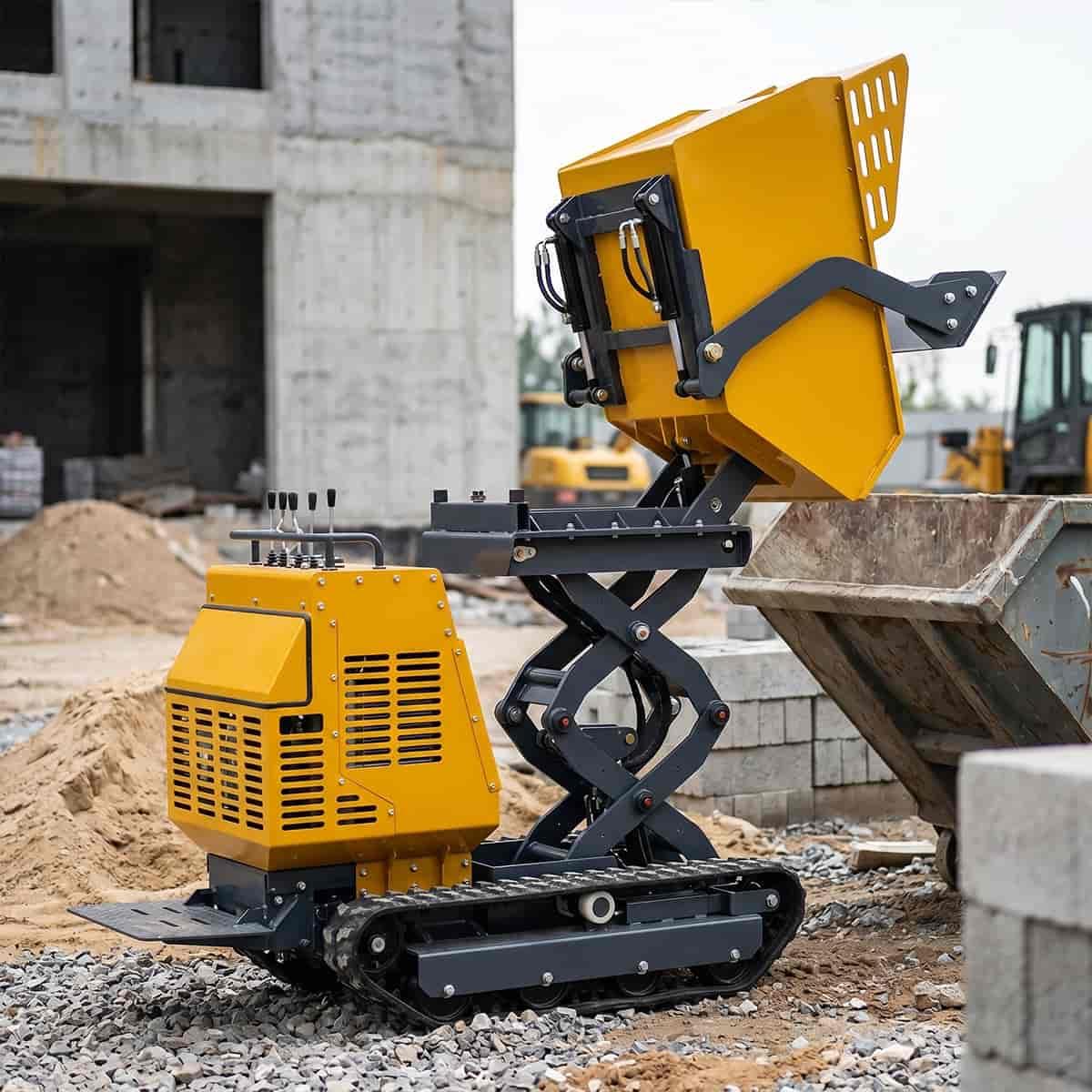

Full-scene Adaptation, All-Round Transport Solution for Complex Working Conditions
Suitable for conventional scenarios such as orchards, construction sites, mines and gardens, it also meets special unloading demands for docking with trucks, silos and high-position equipment. It realizes one-stop efficient operation of loading, transportation, unloading and height docking, acting as an all-purpose ideal solution for material handling under complex working conditions.
- Efficient global shipping
- High quality product guarantee
- Products can be customized according to your needs
- Comprehensive customer service process
| BL-1000 Lifting Dumper — Technical Specifications | |
|---|---|
| Product Overview | |
| Product Name | Lifting Dumper |
| Model | BL-1000 |
| Product Type | Construction Machinery |
| Standard Colors | Yellow / Black |
| Engine Specifications | |
| Engine Model | Briggs & Stratton |
| Engine Type | Single-cylinder Air-cooled Four-stroke |
| Total Displacement | 420 CC |
| Rated Power | 13.5 HP / 3600 rpm |
| Fuel Tank Capacity | 6.5 L |
| Performance Parameters | |
| Max Load Capacity | 1000 kg |
| Cargo Box Capacity | 450 dm³ |
| Max Lifting Height | 1500 mm |
| Tipping Method | Hydraulic Self-unloading |
| Tipping Angle | 90° |
| Discharge Ground Clearance | 1300 mm |
| Tipping Clearance | 300 mm |
| Travel Speed | 5 km/h |
| Gradeability | 20° |
| Min Turning Radius | 1300 mm |
| Dimensions & Weight | |
| Overall Dimensions (L×W×H) | 2500 × 900 × 1560 mm |
| Net Weight | 880 kg |
| Chassis Width | 850 mm |
| Track Width | 180 mm |
| Track Ground Contact Length | 1000 mm |
| Track Center Distance | 670 mm |
| Chassis Ground Clearance | 110 mm |
| Packaging Information | |
| Wooden Crate Volume | 3.3 CBM |
| Iron Frame Volume | 5.5 CBM |
| Wooden Crate Weight | 65 kg |
| Iron Frame Weight | 80 kg |
| Wooden Crate Dimensions | 2100 × 990 × 1580 mm |
| Iron Frame Dimensions | 2200 × 980 × 2550 mm |
| Key Advantages | |
| • Full upgraded baseline performance with all-terrain passability, zero pressure on complex ground conditions • Inherits all advantages of base model: high-passability crawler chassis adapts to mud, slopes, mountains, and grassland; compact and flexible body for narrow sites; high-quality steel construction with reinforced chassis for long-term adverse operation • Integrated self-loading operation — heavy-duty built-in bucket requires no additional equipment, single-operator “load-transport-dump” workflow with hydraulic self-unloading system and large-angle dump design for thorough discharge • Lifting dump body design with hydraulic lifting system, adjustable dump height to match truck beds, transport vehicles, or elevated storage containers; eliminates secondary manual handling and expands operational scenarios • Full-scenario coverage for orchards, construction sites, mines, landscaping, and special working conditions requiring high-altitude docking; achieves “load-transport-dump-dock” full-process efficient operation | |
