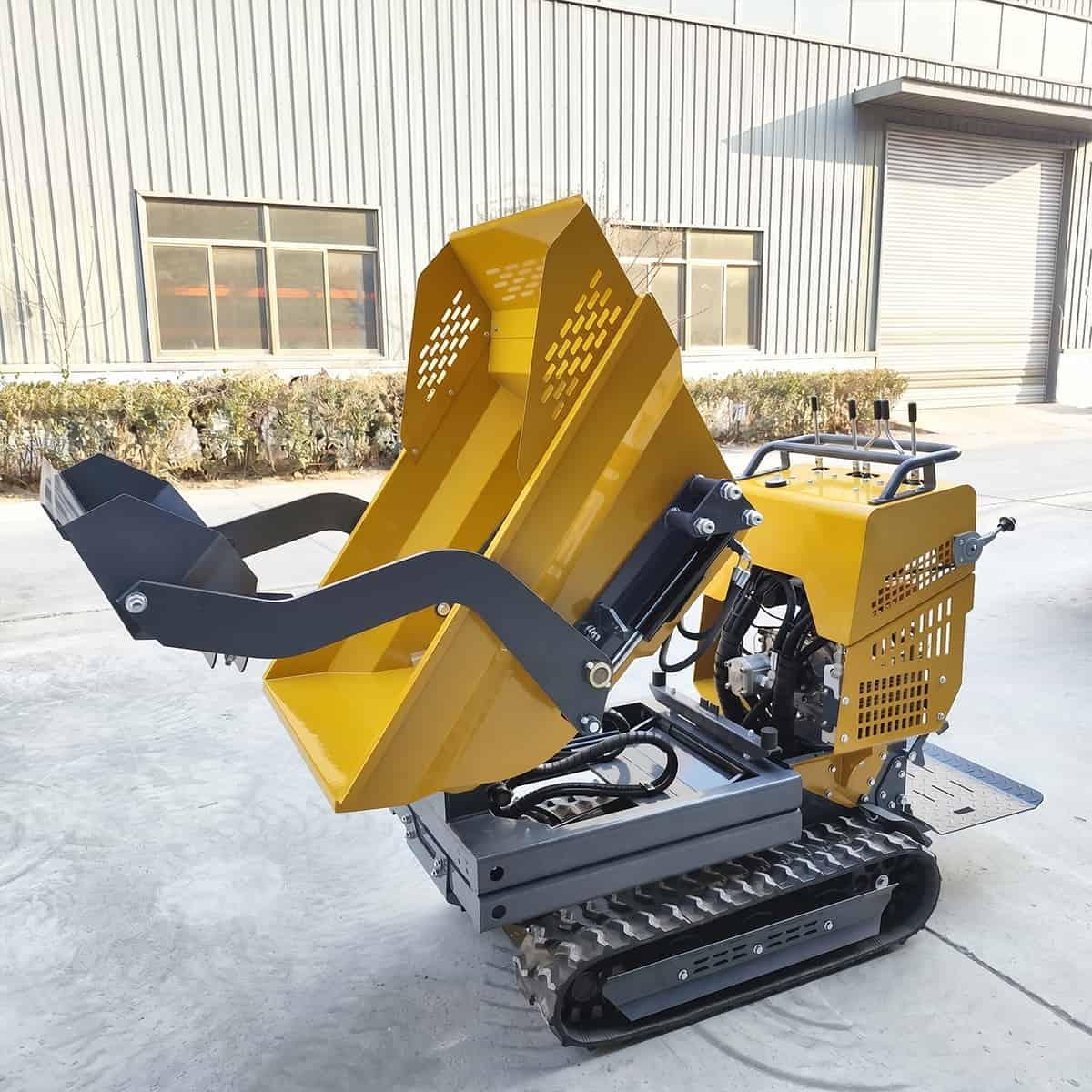

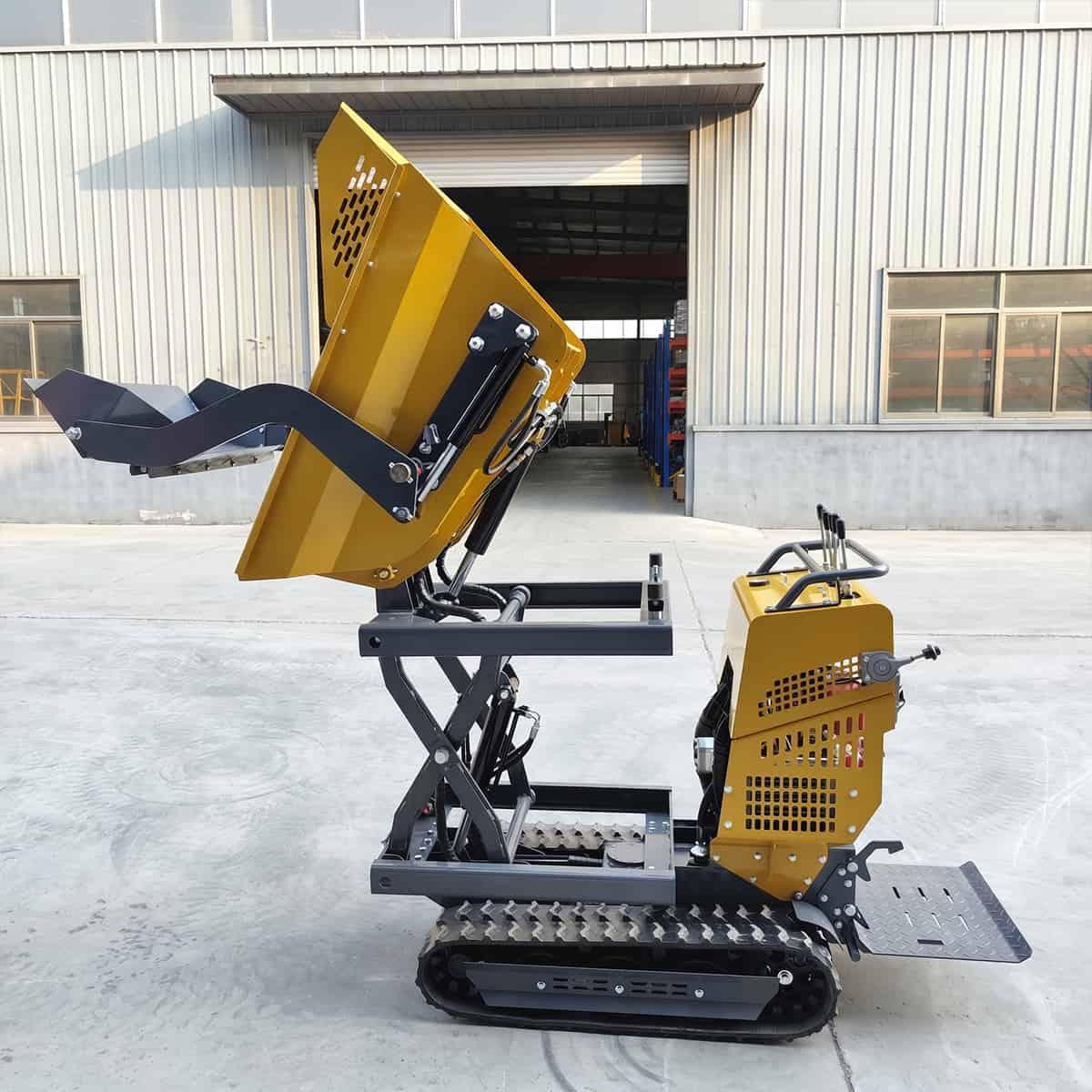

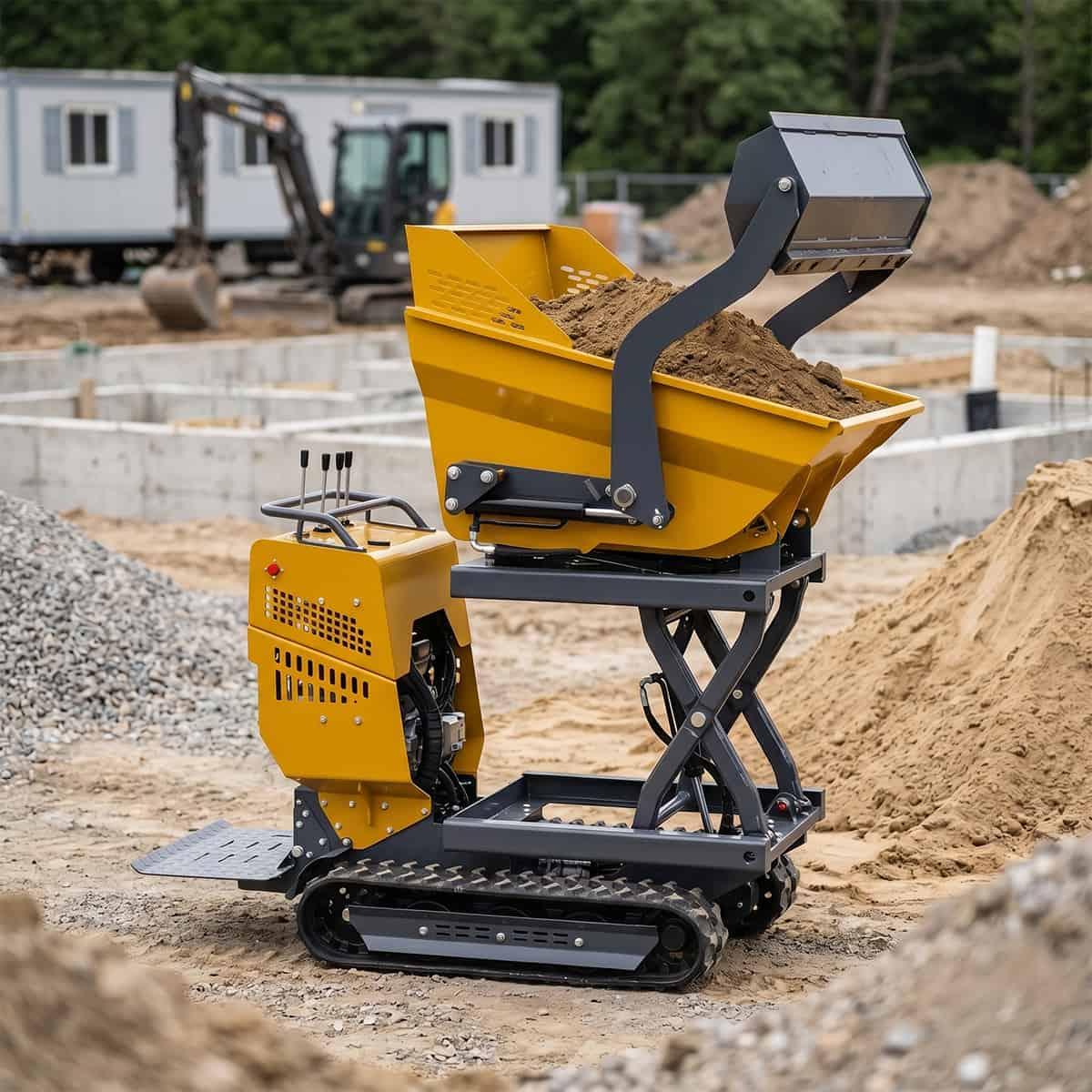

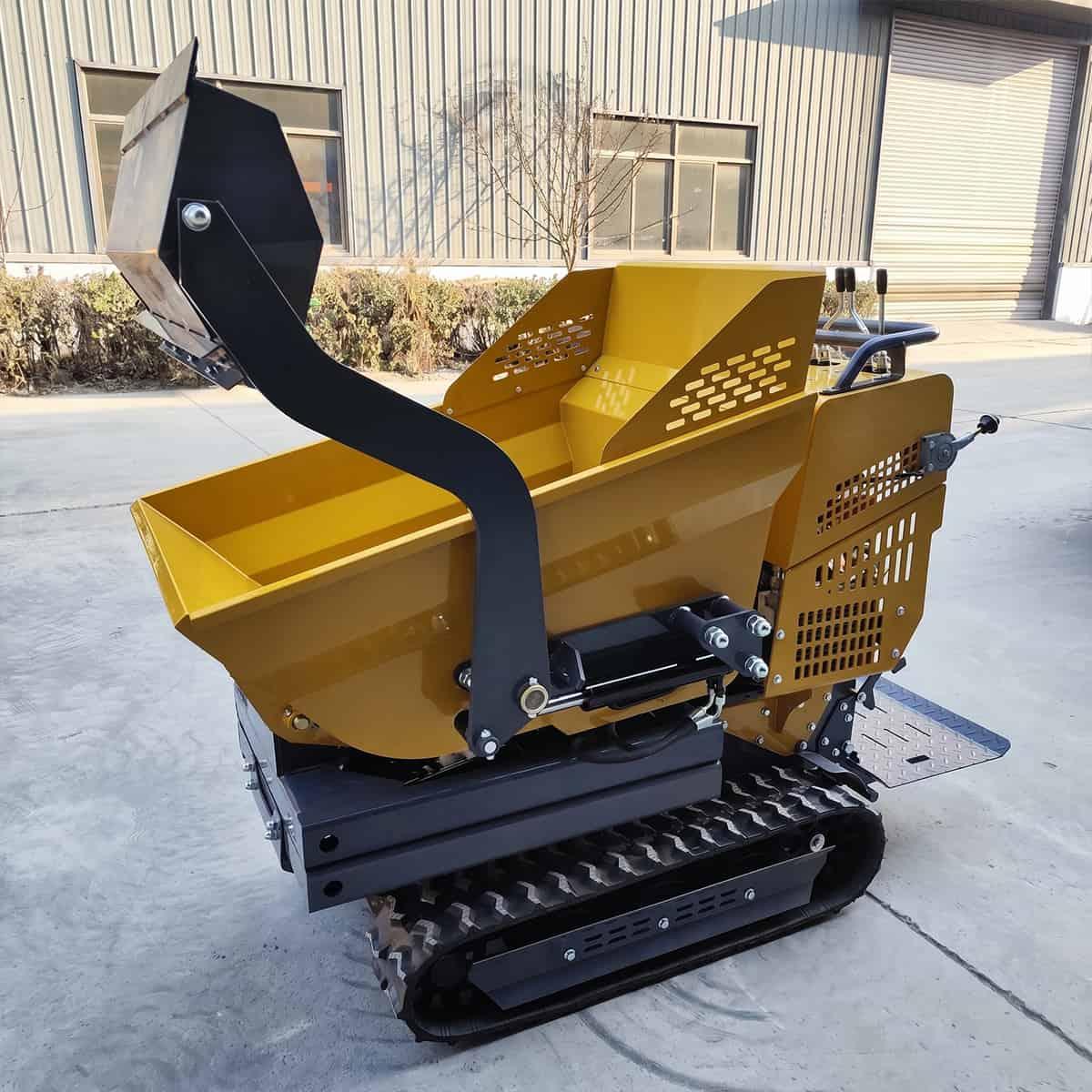

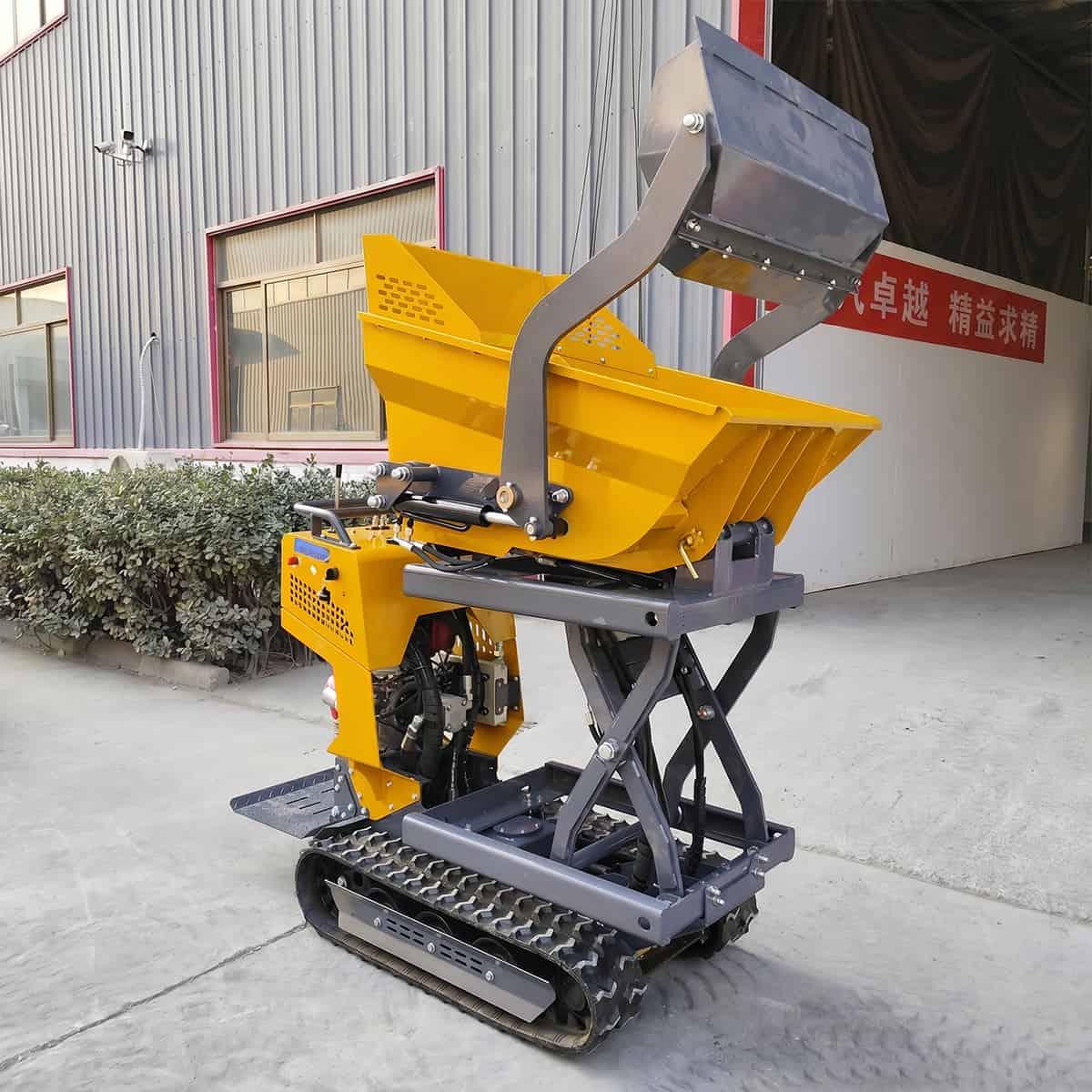

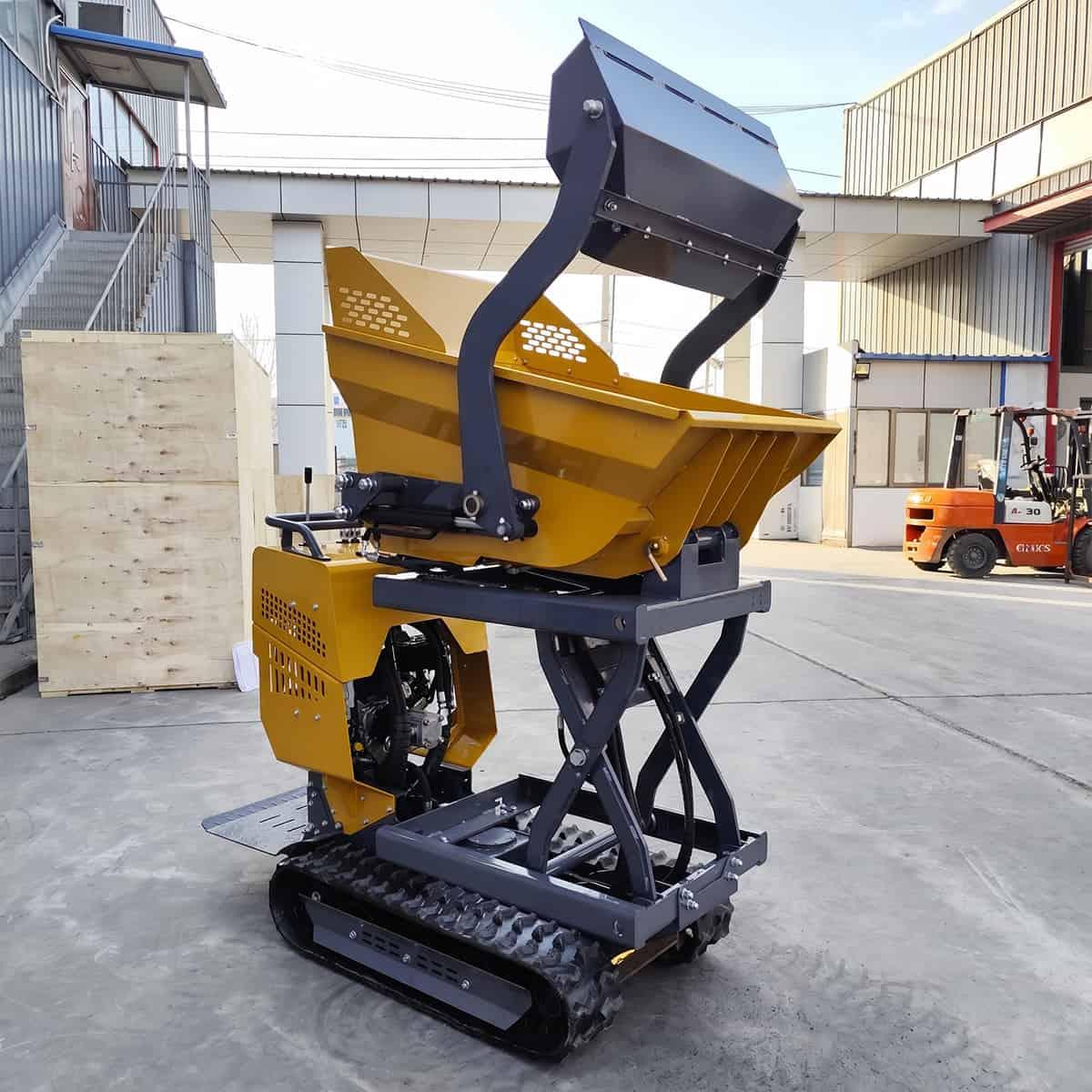

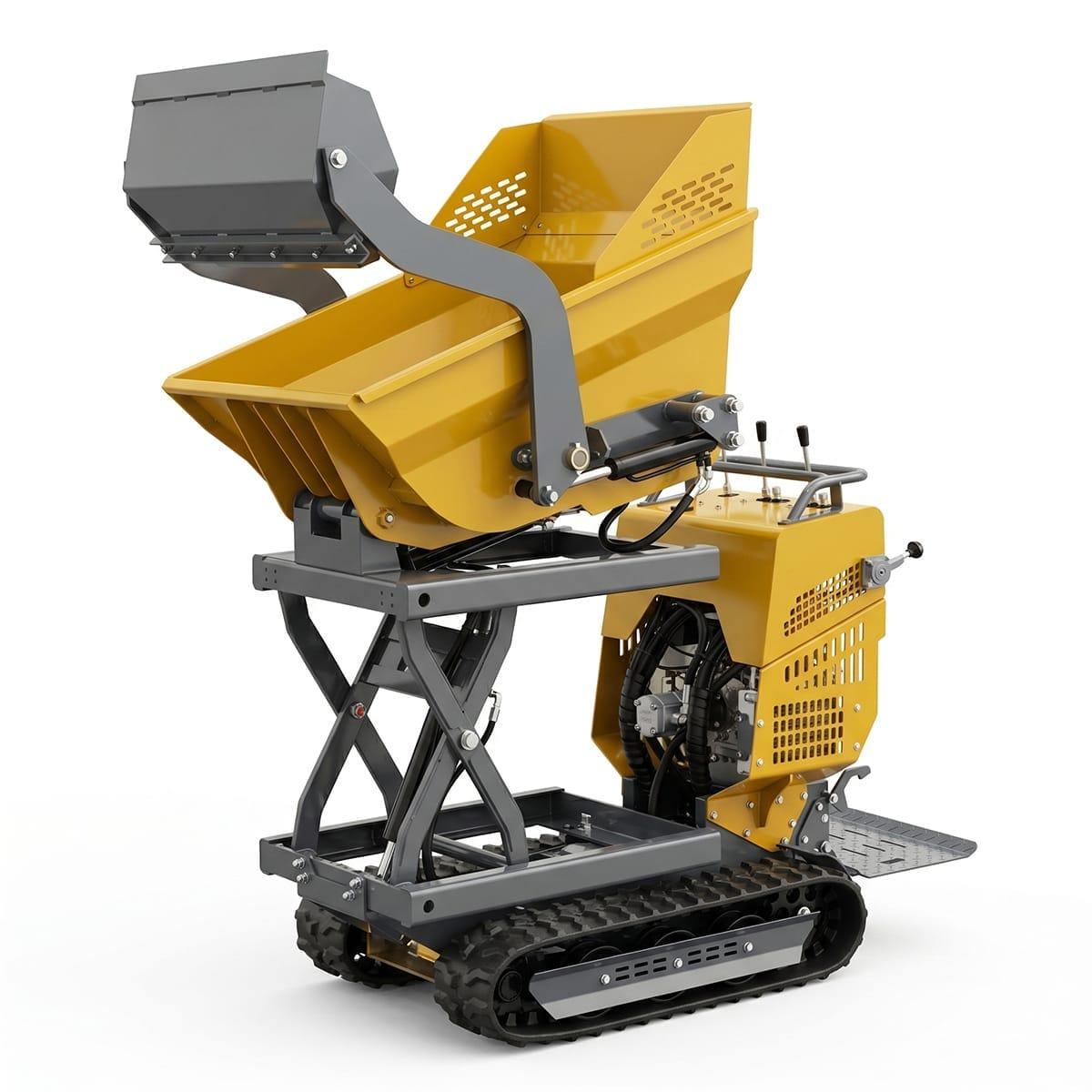

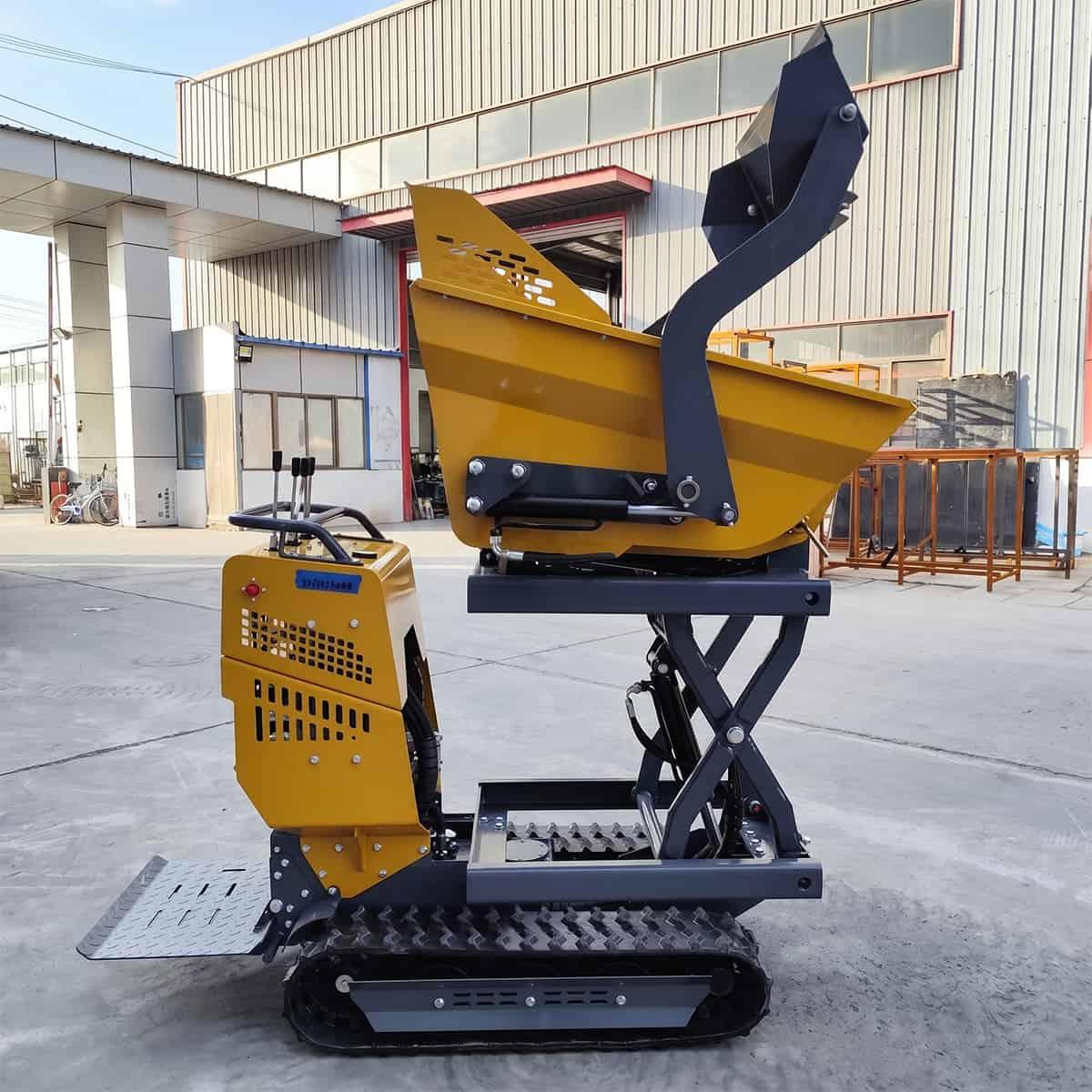

BL-500S
Full-grade Basic Performance, Unrestricted All-terrain Travel
It inherits all advantages of the standard model. The high-traffic rubber track chassis adapts to complex working conditions including mud, slopes, mountains and grasslands. Compact and flexible in structure, it operates effortlessly in narrow spaces. Built with high-quality steel and equipped with a reinforced shock-resistant chassis, the whole machine is sturdy and wear-resistant, perfectly suitable for long-term operation in harsh environments.
Integrated Self-loading Operation, High Efficiency & Labor Saving
Equipped with a heavy-duty integrated self-loading bucket, no auxiliary equipment is required, enabling one-person independent loading. Matched with a hydraulic dumping system, one-click unloading is labor-saving and efficient. The large-angle tipping bucket ensures thorough material discharge with minimal residue, effectively reducing labor intensity and improving overall transportation efficiency.
Lifting Bucket Design, Flexible Docking & Unloading
Fitted with a hydraulic lifting system, the bucket height is adjustable on demand. It can easily connect with cargo platforms, transport vehicles and storage containers of different heights. No secondary manual handling is needed, solving the pain point of traditional equipment failing to adapt to high platforms and expanding application scenarios greatly.
Full-scene Coverage, All-round Transit Solution for Complex Conditions
It is widely applicable to orchards, construction sites, mines, gardens and other conventional scenarios, and meets special unloading demands for docking with trucks, silos and high-position equipment. It realizes efficient one-stop operation of loading, transportation, unloading and height docking, serving as an all-purpose material handling solution for complex working environments.
- Efficient global shipping
- High quality product guarantee
- Products can be customized according to your needs
- Comprehensive customer service process
| BL-500S Lifting Dumper — Technical Specifications | |
|---|---|
| Product Overview | |
| Product Name | Lifting Dumper |
| Model | BL-500S |
| Product Type | Construction Machinery |
| Standard Colors | Yellow / Black |
| Engine Specifications | |
| Engine Model | Briggs & Stratton Vanguard |
| Engine Type | Single-cylinder Air-cooled Four-stroke |
| Total Displacement | 203 CC |
| Rated Power | 6.5 HP / 3600 rpm |
| Fuel Tank Capacity | 3.6 L |
| Performance Parameters | |
| Max Load Capacity | 500 kg |
| Cargo Box Capacity | 200 dm³ |
| Max Lifting Height | 1200 mm |
| Tipping Method | Hydraulic Self-unloading |
| Tipping Angle | 90° |
| Discharge Ground Clearance | 1050 mm |
| Tipping Clearance | 220 mm |
| Travel Speed | 2.88 km/h |
| Gradeability | 20° |
| Min Turning Radius | 1.15 m |
| Dimensions & Weight | |
| Overall Dimensions (L×W×H) | 2050 × 880 × 1300 mm |
| Net Weight | 535 kg |
| Chassis Width | 700 mm |
| Track Width | 180 mm |
| Track Ground Contact Length | 900 mm |
| Chassis Ground Clearance | 110 mm |
| Packaging Information | |
| Wooden Crate Volume | 2.3 CBM |
| Iron Frame Volume | 4.0 CBM |
| Wooden Crate Weight | 50 kg |
| Iron Frame Weight | 60 kg |
| Wooden Crate Dimensions | 1630 × 940 × 1450 mm |
| Iron Frame Dimensions | 1570 × 980 × 2480 mm |
| Key Advantages | |
| • Full upgraded baseline performance with all-terrain passability, zero pressure on complex ground conditions • Integrated self-loading operation — heavy-duty built-in bucket requires no additional loader, single-operator “load-transport-dump” workflow • Lifting dump body design with hydraulic lifting system, adjustable dump height to match truck beds and elevated containers, eliminating secondary manual handling • Full-scenario coverage for orchards, farms, mines, landscaping, and special working conditions with high-altitude discharge requirements • High-quality steel construction with reinforced chassis, excellent shock resistance and durability for long-term adverse operation • Centralized handle control with electric start for easy operation and low maintenance | |
