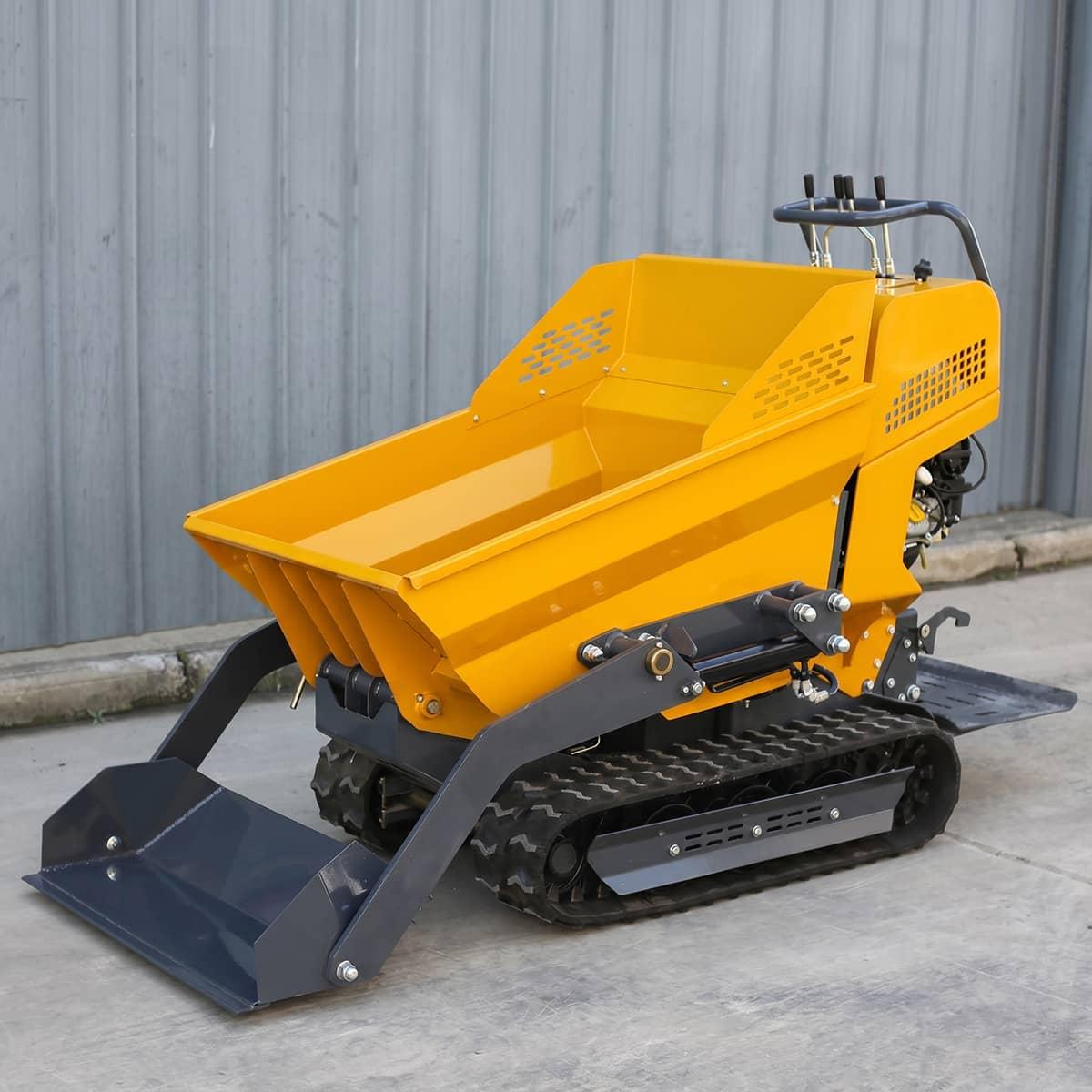

BL-500
Superior All-Terrain Performance
Featuring a heavy-duty rubber track chassis, it delivers strong traction and exceptional climbing grip. It easily tackles harsh terrains such as muddy slopes, swamps, mountains, grasslands and snowfields. The compact, agile body enables flexible travel in narrow work zones and forest trails.

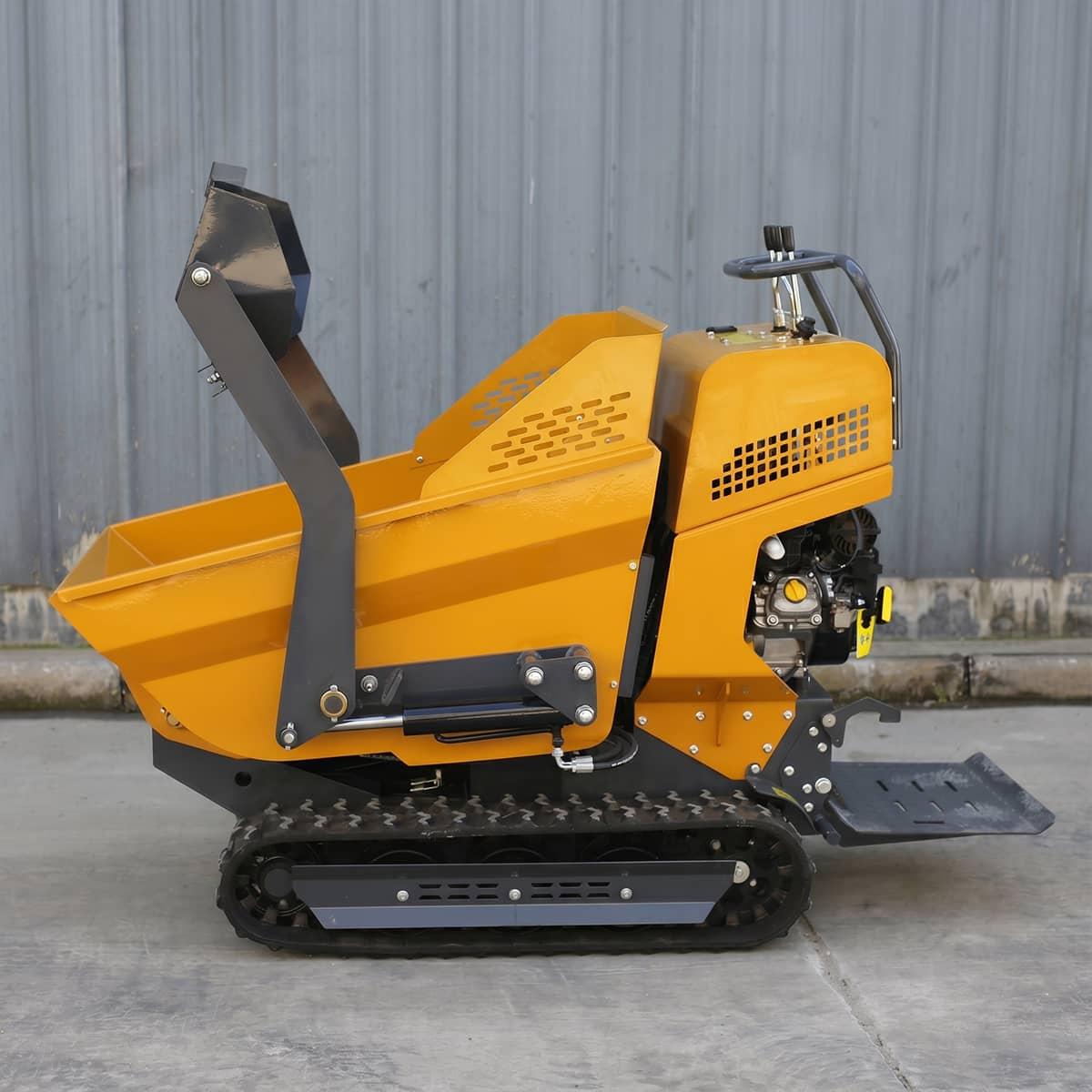

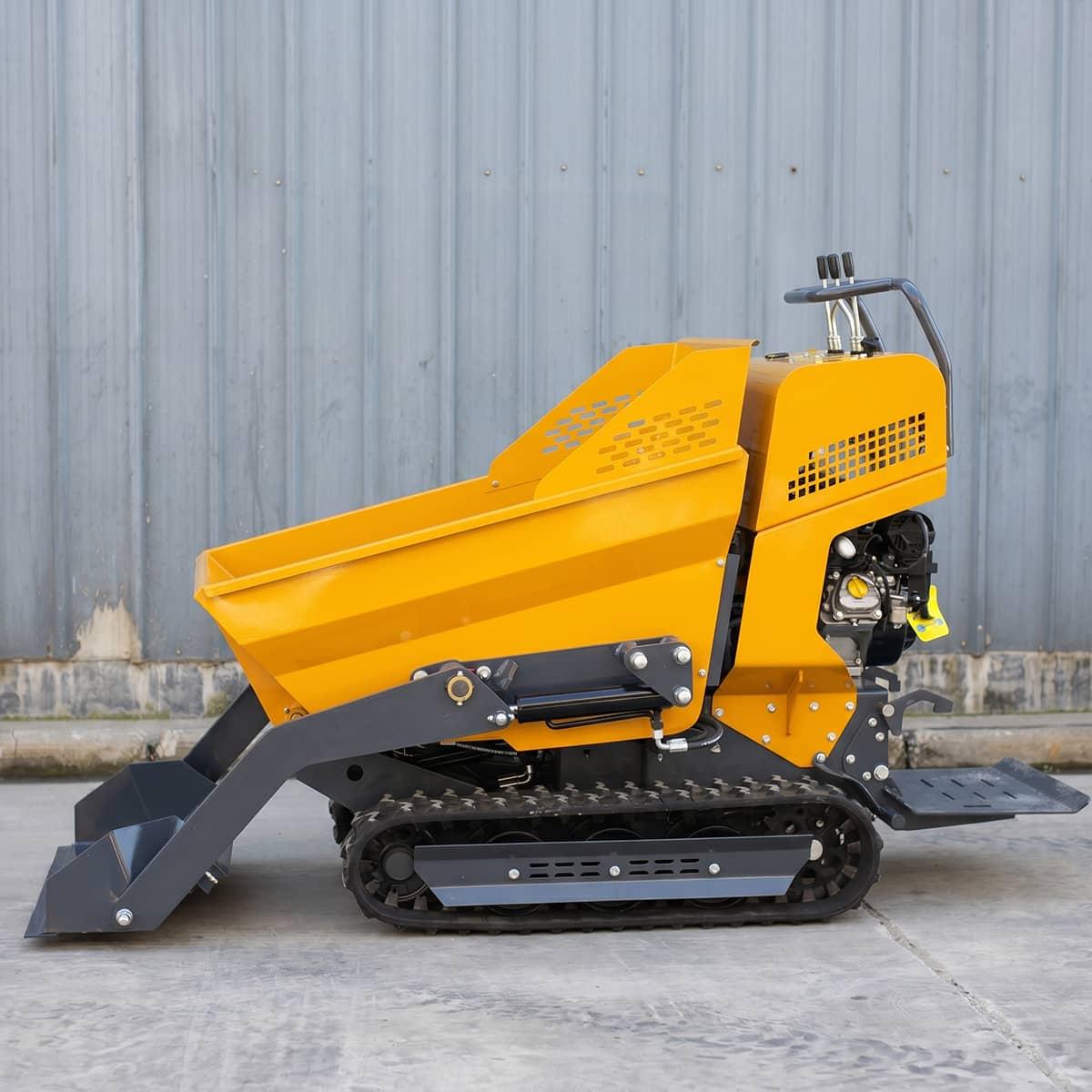

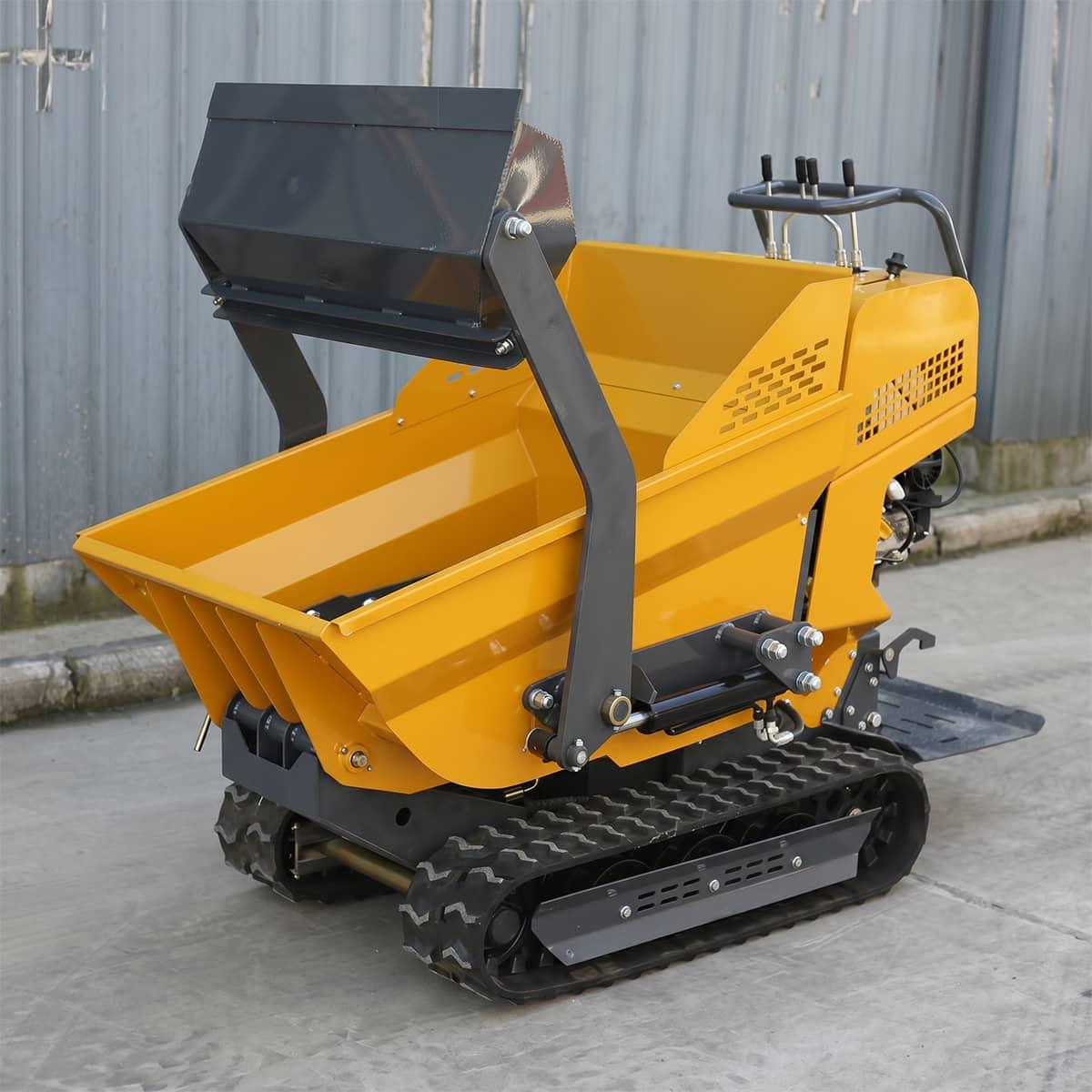

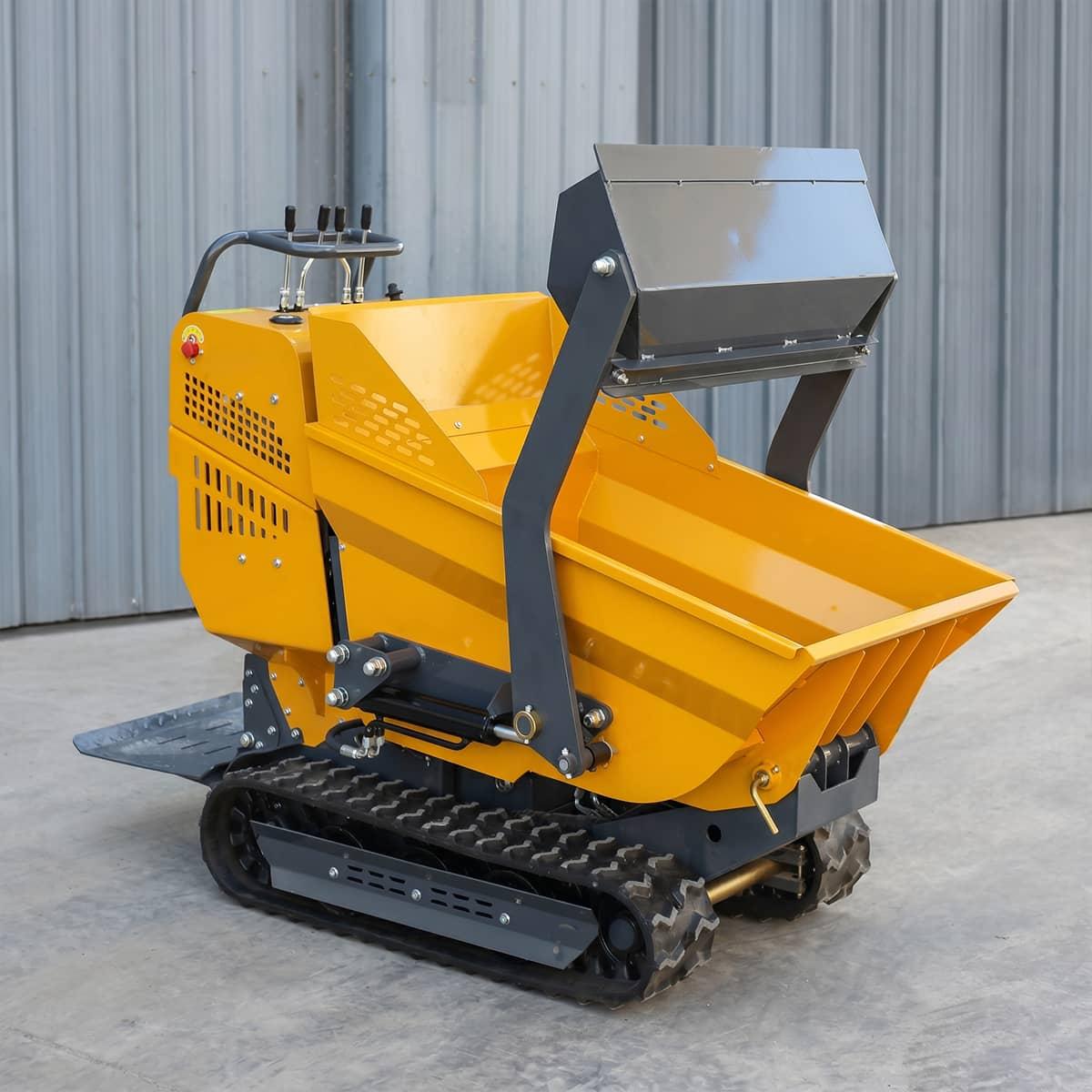

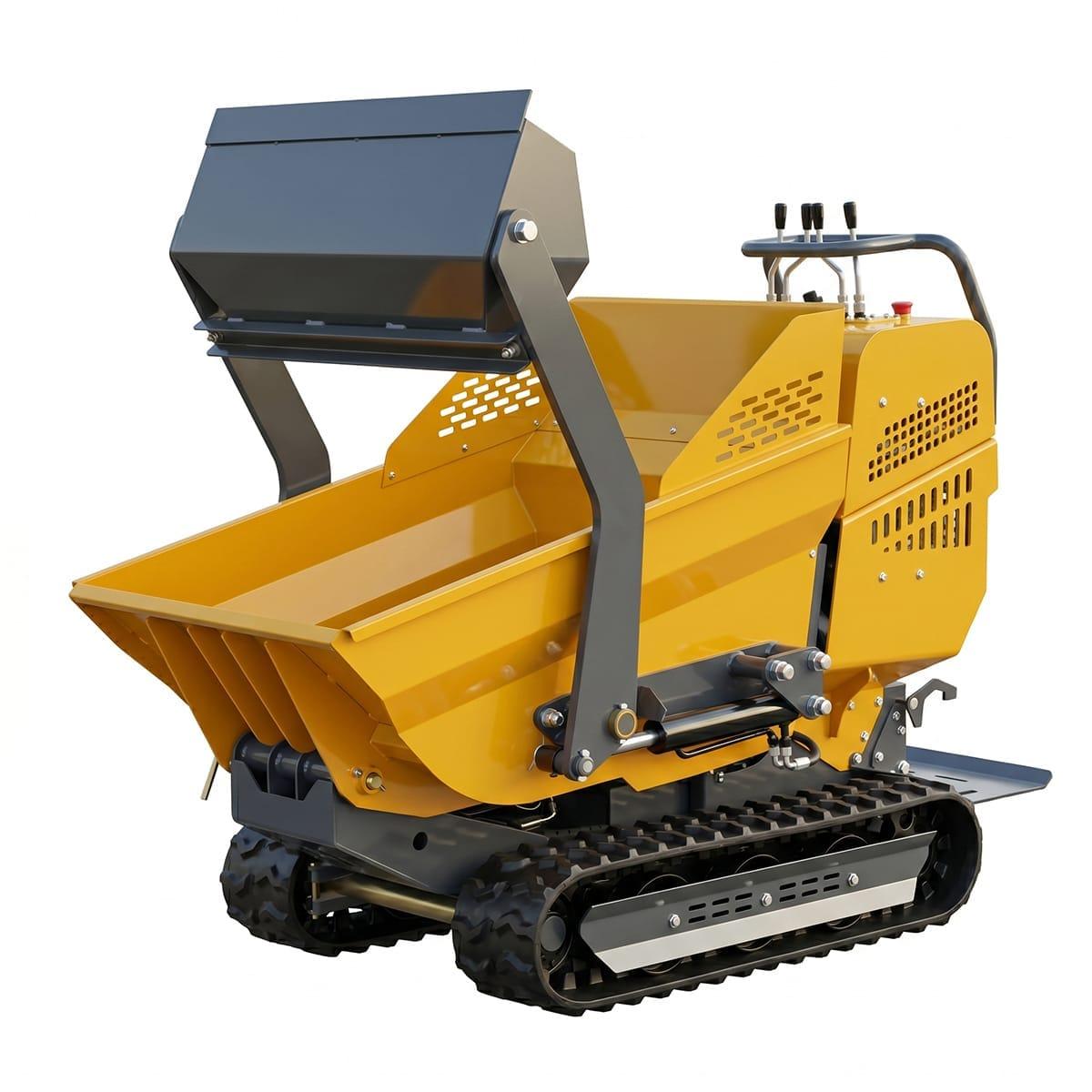

Self-Loading & Hydraulic Dumping, Labor-Saving Operation

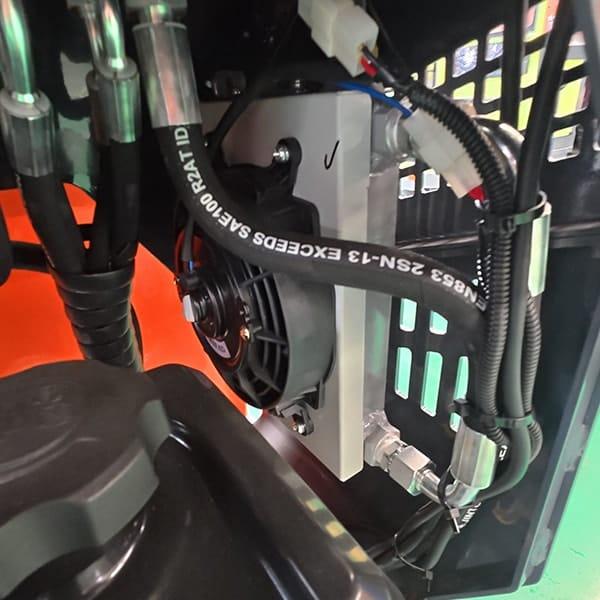

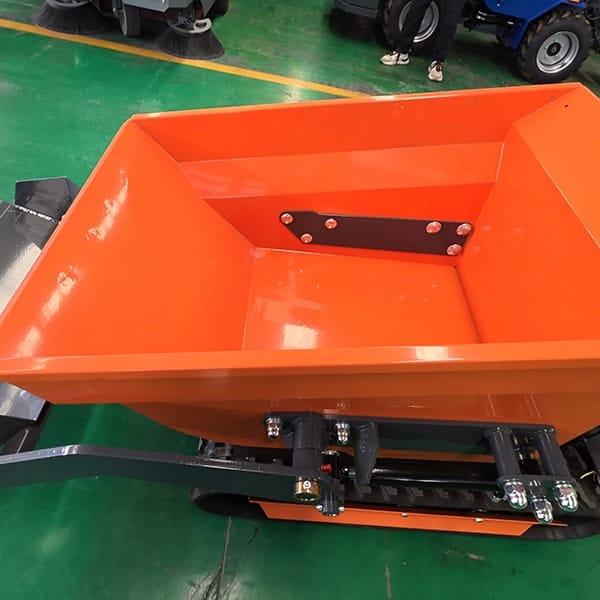

Comes with an integrated self-loading bucket with no need for auxiliary loaders. A single operator can finish the whole loading, hauling and unloading process. The hydraulic self-discharging system supports one-click dumping; the large-angle tipping bucket ensures complete material discharge, greatly improving transport efficiency and reducing labor costs.
Sturdy Structure, Stable & Low Maintenance

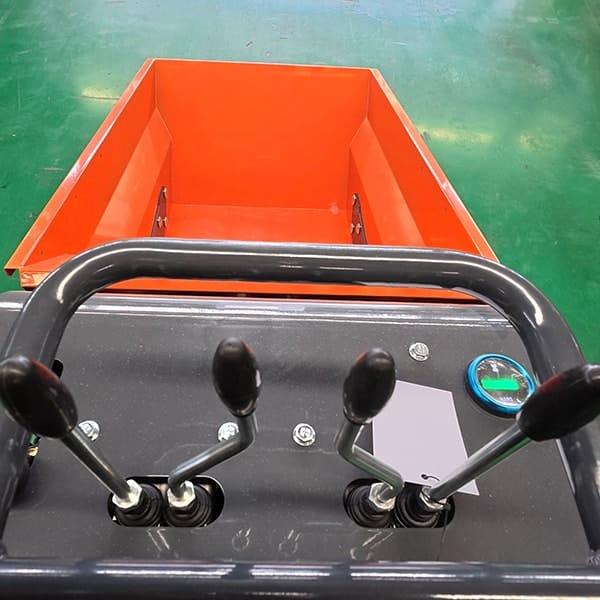

Constructed with high-strength premium steel for great impact resistance and wear durability. The reinforced shock-absorbent chassis adapts to long-term harsh working conditions. With centralized lever control and electric start design, it is easy to operate, convenient for daily upkeep, low in failure rate and highly durable.

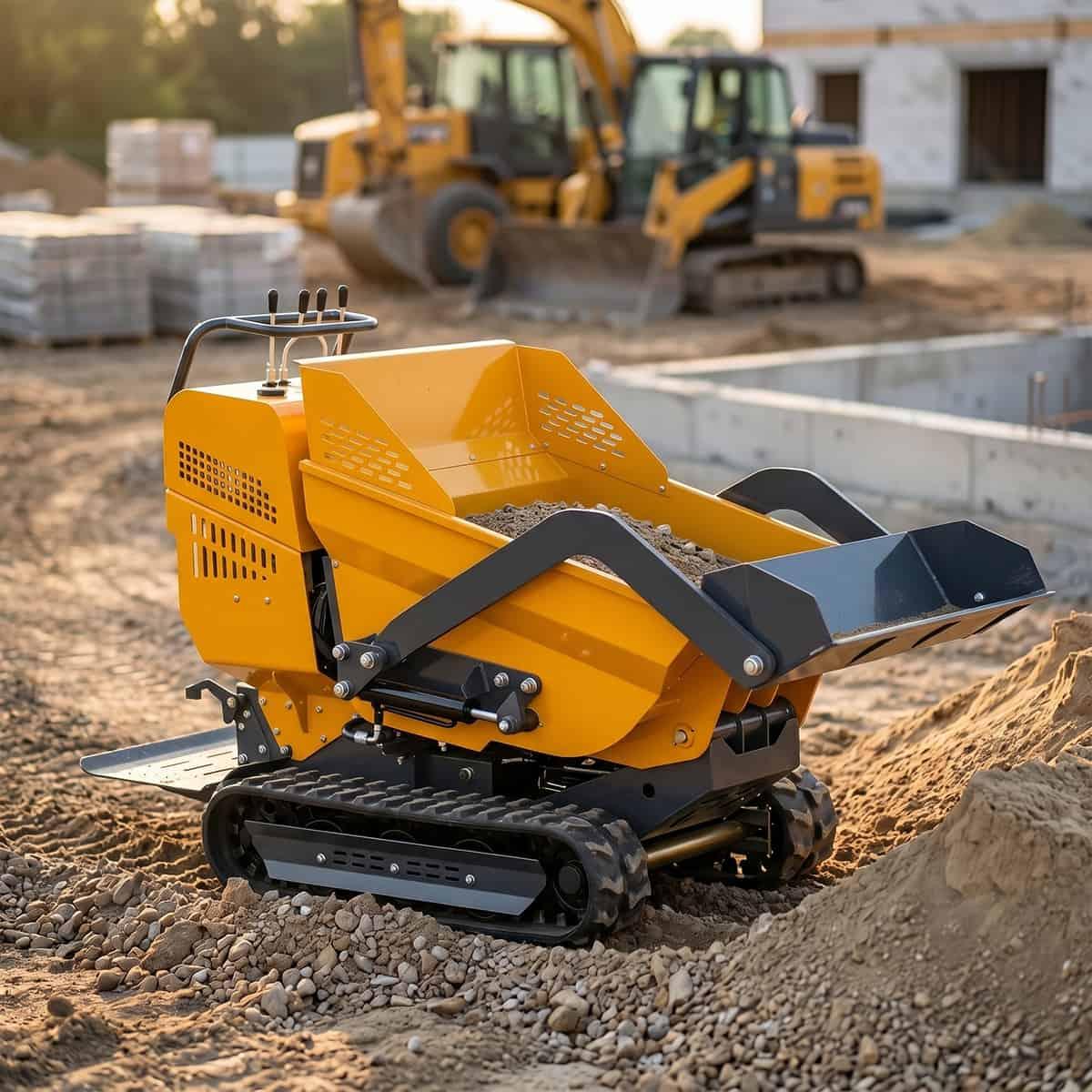

Multi-Material Compatibility & Cost-Effective Transit
Ideal for short-distance transportation of sand, gravel, soil, crops, feed, timber and other materials. It serves as a high-cost-performance handling solution for small-scale engineering, farming, landscaping and mining scenarios.
- Efficient global shipping
- High quality product guarantee
- Products can be customized according to your needs
- Comprehensive customer service process
| BL-500 Dump Truck — Technical Specifications | |
|---|---|
| Product Overview | |
| Product Name | Dump Truck |
| Model | BL-500 |
| Product Type | Construction Machinery |
| Standard Colors | Yellow / Black |
| Engine Specifications | |

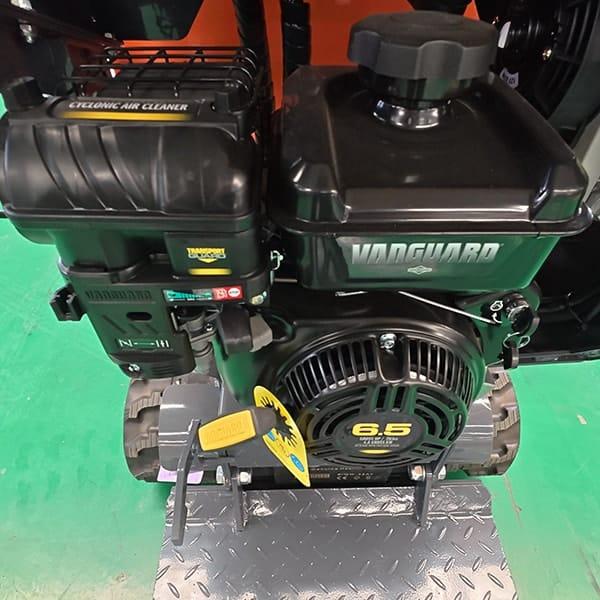

| Engine Model | Briggs & Stratton Vanguard |
| Engine Type | Single-cylinder Air-cooled Four-stroke |
| Total Displacement | 203 CC |
| Rated Power | 6.5 HP / 3600 rpm |
| Fuel Tank Capacity | 3.6 L |
| Performance Parameters | |
| Max Load Capacity | 500 kg |
| Cargo Box Capacity | 200 dm³ |

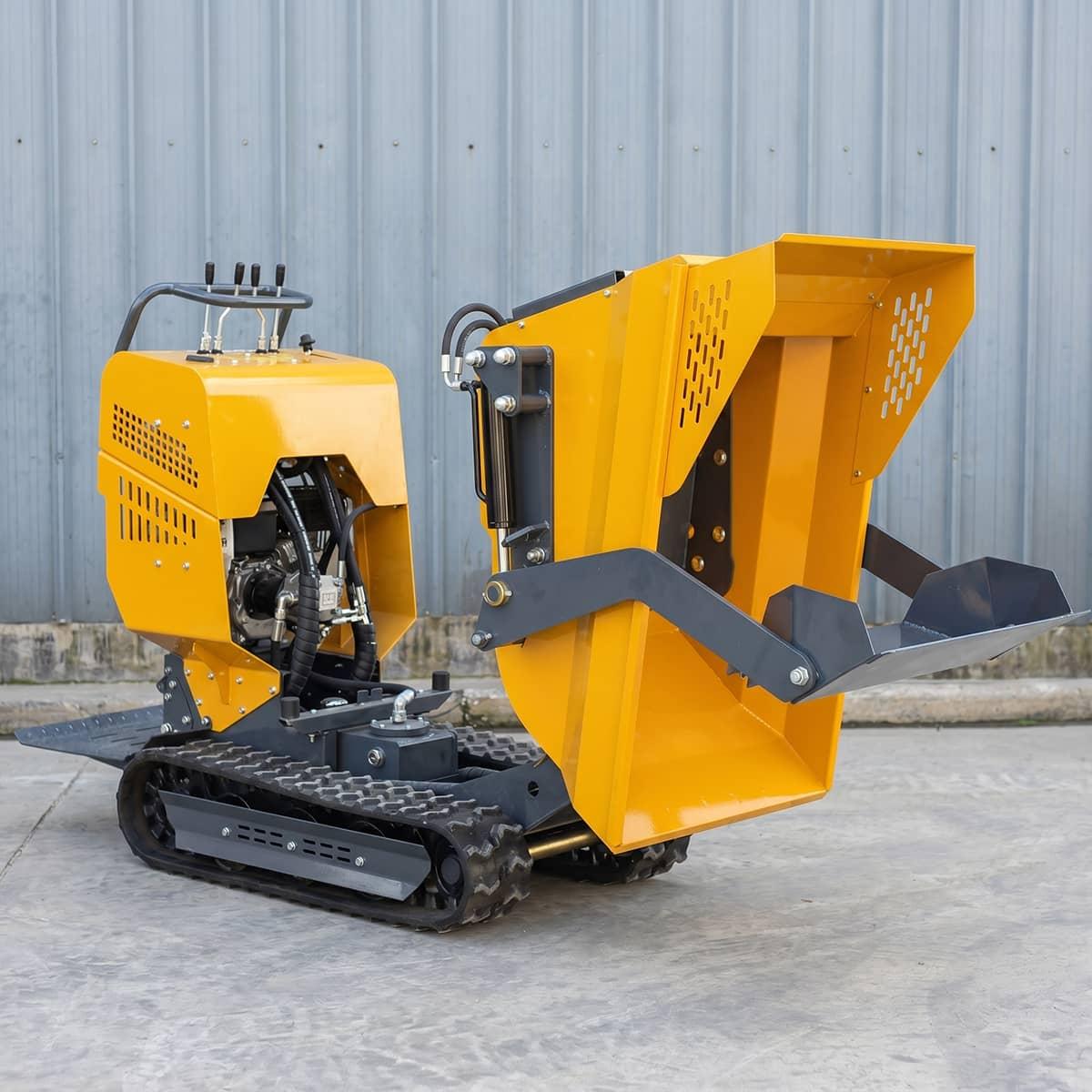

| Tipping Method | Hydraulic Self-unloading |
| Tipping Angle | 90° |
| Discharge Ground Clearance | 1050 mm |
| Tipping Clearance | 220 mm |
| Travel Speed | 2.88 km/h |
| Gradeability | 20° |
| Min Turning Radius | 1.15 m |
| Dimensions & Weight | |
| Overall Dimensions (L×W×H) | 2050 × 880 × 1300 mm |
| Net Weight | 535 kg |
| Chassis Width | 700 mm |
| Track Width | 180 mm |
| Track Ground Contact Length | 900 mm |
| Chassis Ground Clearance | 110 mm |
| Packaging Information | |
| Wooden Crate Volume | 2.3 CBM |
| Iron Frame Volume | 4.0 CBM |
| Wooden Crate Weight | 50 kg |
| Iron Frame Weight | 60 kg |
| Wooden Crate Dimensions | 1630 × 940 × 1450 mm |
| Iron Frame Dimensions | 1570 × 980 × 2480 mm |
| Key Advantages | |
| • All-terrain high passability, unobstructed operation in complex working conditions • Rubber crawler chassis with strong traction and superior climbing grip, easily handling muddy slopes, swamps, mountainous terrain, and grassland • Built-in heavy-duty self-loading bucket, no additional loader required, single-operator “load-transport-dump” workflow • Hydraulic self-unloading system with one-key operation and large-angle dump design for thorough material discharge • High-quality steel construction with excellent hardness, impact resistance, and wear resistance • Centralized handle operation with electric start for easy maintenance and low failure rate • Versatile material handling for sand, soil, fruit, feed, and timber in small-scale construction, agriculture, and mining | |
